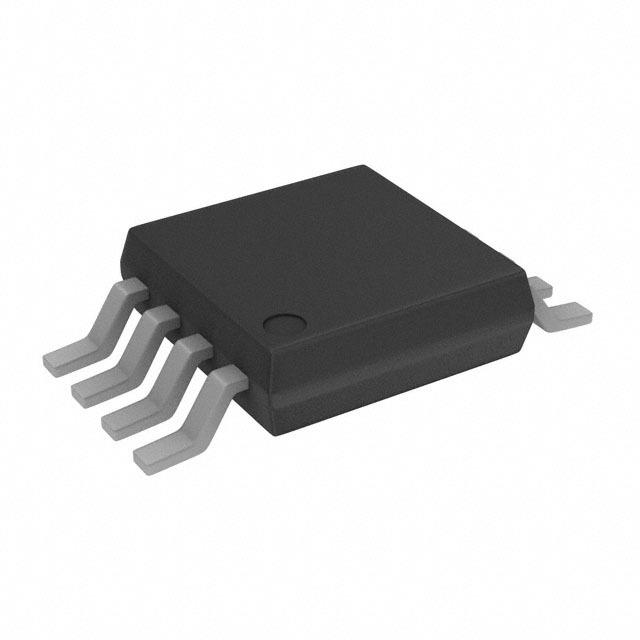

Product Overview: AD8315ARMZ-RL from Analog Devices Inc.

The AD8315ARMZ-RL is a precision, fully integrated RF detector from the renowned semiconductor manufacturer Analog Devices Inc. This device is designed to provide accurate and fast measurements of signal power in communication and control systems. Its primary function is to convert an RF input signal to a corresponding DC voltage output, which is proportional to the logarithm of the input signal amplitude, thus acting as a log amplifier or logarithmic detector.

Key Features

• Frequency Range: The AD8315ARMZ-RL operates over a broad frequency range from 100 MHz to 2.5 GHz, making it suitable for a wide array of RF and IF applications.
• Dynamic Range: It offers an impressive dynamic range of 50 dB, ensuring reliable performance across various signal strengths.
• Accuracy: This device is characterized by a high level of accuracy, with a typical logarithmic slope of 25 mV/dB and an intercept of -84 dBm.
• Fast Response: With a response time of just 15 ns, the AD8315ARMZ-RL is capable of handling fast-changing RF signals, which is essential for both agile RF systems and burst mode signal detection.
• Package: The device is available in a compact MSOP-8 package, which is suitable for space-constrained applications.
• Power Supply: It operates from a single 2.7 V to 5.5 V power supply, accommodating a variety of system voltages.

Applications

The AD8315ARMZ-RL is ideal for use in a range of applications including:

• Wireless base stations
• RF/IF PA setpoint control and level monitoring
• RSSI measurement in cellular handsets
• Transmitter antenna VSWR protection
• Power amplifier linearization

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and the AD8315ARMZ-RL is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability for critical communication systems.

For detailed specifications, application notes, and additional resources, interested parties should consult the official datasheet and product resources provided by Analog Devices Inc.
