Product Overview: AD7862ARSZ-3REEL

The AD7862ARSZ-3REEL is a high-performance, dual 12-bit analog-to-digital converter (ADC) from the renowned manufacturer Analog Devices Inc. Designed to cater to a wide range of applications, this ADC is particularly well-suited for battery-powered systems, data acquisition equipment, and medical instruments due to its low power consumption and compact surface-mount package.

Key Features

• High Resolution: The AD7862ARSZ-3REEL boasts a 12-bit resolution, providing precise digital representation of analog signals.
• Dual ADC Channels: Equipped with two independent ADC channels, it allows simultaneous sampling and conversion of two analog inputs, enhancing throughput and system efficiency.
• Low Power Consumption: Designed for power-sensitive applications, this ADC operates with a low power requirement, making it ideal for portable and battery-operated devices.
• Wide Operating Temperature Range: With an operating temperature range from -40°C to +85°C, this device ensures reliable performance across diverse environmental conditions.
• Flexible Power Supply: The AD7862ARSZ-3REEL can be powered by a single 3 V supply, simplifying power management in mixed-voltage systems.

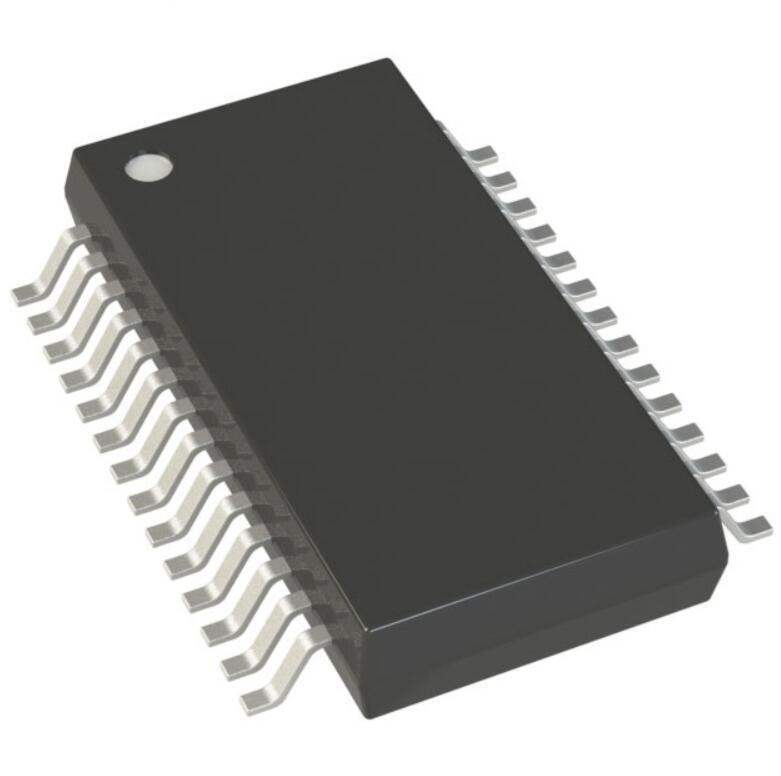

• Surface-Mount Package: The compact surface-mount package (SSOP) allows for efficient use of board space and is well-suited for space-constrained applications.

Technical Specifications

The AD7862ARSZ-3REEL operates with a conversion rate of up to 1 MSPS (mega samples per second), ensuring rapid data acquisition for real-time processing. The device also features on-chip track and hold circuits, which stabilize the input signal during the conversion process, resulting in accurate and consistent data output.

In addition to its technical prowess, the AD7862ARSZ-3REEL is available in a tape and reel packaging option, making it an ideal choice for automated assembly processes and high-volume production environments.

Applications

• Battery-Powered Devices
• Data Acquisition Systems
• Medical Instruments
• Industrial Control Systems
• Instrumentation

Analog Devices Inc. is known for its commitment to quality, and the AD7862ARSZ-3REEL is no exception. With its combination of performance, efficiency, and reliability, this ADC is an excellent choice for designers looking to incorporate high-precision data conversion into their next project.
