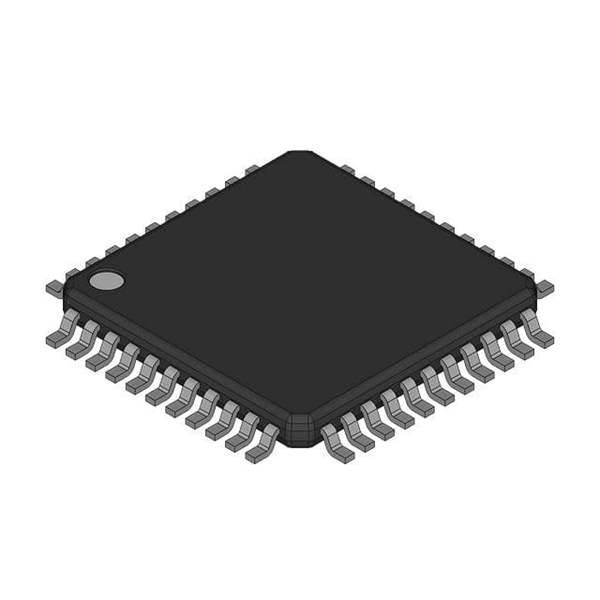

The AD7836AS is a high-performance, precision digital-to-analog converter (DAC) manufactured by Analog Devices Inc., a leader in the field of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits. The AD7836AS is part of their extensive range of DACs designed for applications requiring accurate and reliable conversion from digital data to analog signals.

Key Features

• Resolution: The AD7836AS boasts a 14-bit resolution, providing fine granularity and precise control over the analog output.
• Quad Voltage Output: This DAC features four independent voltage output channels, making it suitable for complex systems that require multiple analog signals from a single digital source.
• High-Speed Interface: With a fast parallel interface, the AD7836AS ensures quick data transfer, which is essential for applications with stringent timing requirements.
• Low Power Consumption: Designed for power-sensitive applications, it operates with a low power consumption, thereby reducing the thermal footprint and the need for additional cooling solutions.
• Settling Time: The AD7836AS offers a fast settling time, allowing for rapid changes in the analog output without significant delay, which is critical for real-time applications.

Applications

The versatility of the AD7836AS makes it an ideal choice for a wide range of applications, including:

• Industrial automation and process control systems
• Data acquisition systems
• Digital signal processing
• Automated test equipment
• Medical instrumentation

Technical Specifications

For more detailed specifications and application notes, please refer to the official datasheet and product documentation available on the Analog Devices Inc. website.
