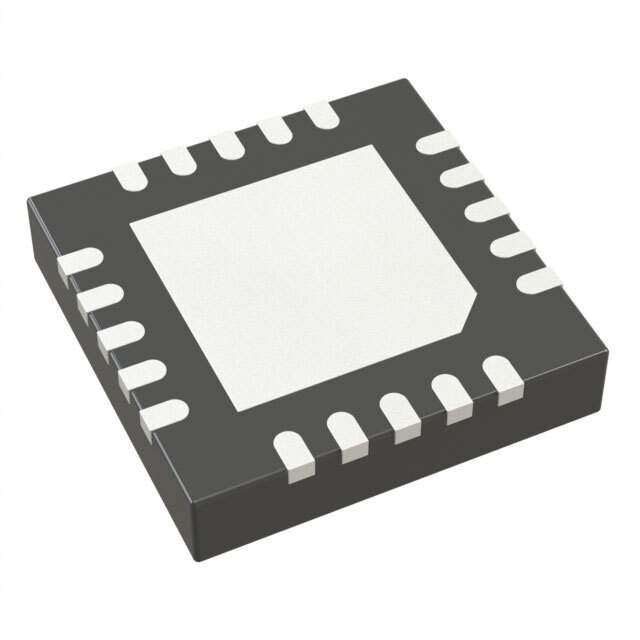

The AD7689ACPZ is a high-performance, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) brought to you by Analog Devices Inc., a leader in high-performance semiconductors. This precision ADC offers a versatile solution for various applications, including medical instruments, industrial control systems, and data acquisition devices.

Key Features

• Resolution: The device boasts a 16-bit resolution, providing high precision in measurement with a sampling rate up to 500 kSPS (kilo-samples per second).
• Input Range: It features a true bipolar input range of ±V REF and a pseudo-differential unipolar input range of 0 to V REF, where V REF can range from 2.5V to 5.1V.
• Interface: The AD7689ACPZ includes a flexible SPI-compatible serial interface, which allows easy integration with most microcontrollers and digital systems.
• Temperature Range: This ADC operates reliably over an extended industrial temperature range of -40°C to +125°C, suitable for harsh environments.
• Package: The device comes in a compact 20-lead LFCSP (Lead Frame Chip Scale Package), which minimizes the footprint on your PCB and is ideal for space-constrained applications.

Performance Advantages

The AD7689ACPZ stands out for its exceptional performance, offering features such as a low power consumption mode and a no missing codes guarantee. With its on-chip oversampling and filtering, it reduces noise and improves signal integrity, making it an excellent choice for precision data acquisition. The built-in sequencer enables automatic channel scanning, which simplifies the design and reduces processor overhead.

Applications

With its robust feature set, the AD7689ACPZ is well-suited for a wide range of applications:

• Medical Imaging Systems
• Battery-Powered Devices
• Data Acquisition Systems
• Industrial Process Control
• Instrumentation and Control Systems

Whether you are designing a sophisticated medical device or a rugged industrial control unit, the AD7689ACPZ from Analog Devices Inc. provides the accuracy, speed, and reliability needed to meet the demands of your application.
