The AD7545BQ from Analog Devices Inc. is a high-performance, 12-bit CMOS digital-to-analog converter (DAC) designed to meet the rigorous demands of precision analog applications. This versatile DAC features a buffered multiplying input, making it an excellent choice for applications requiring a programmable gain amplifier or variable reference voltage.

Key Features

• High Precision: The AD7545BQ offers a 12-bit resolution which ensures fine granularity in the analog output, suitable for applications where precise analog signal control is critical.
• Buffered Multiplying Input: This feature allows direct input of a variable reference voltage, which can be used to modulate the output, thus making the device ideal for gain setting and waveform generation applications.
• Low Power Consumption: Designed with CMOS technology, the AD7545BQ is optimized for low power operation, which is essential for battery-powered and energy-saving devices.
• Monotonicity: The DAC output is guaranteed to be monotonic over the entire operating temperature range, ensuring reliable and predictable performance.
• Settling Time: It features a fast settling time, allowing for quick updates to the analog output, beneficial in rapidly changing signal environments.

Applications

The AD7545BQ is well-suited for a wide range of applications, including:

• Digital Gain and Offset Adjustment
• Process Control and Automation
• Data Acquisition Systems
• Waveform Generation
• Programmable Filters and Oscillators

Technical Specifications

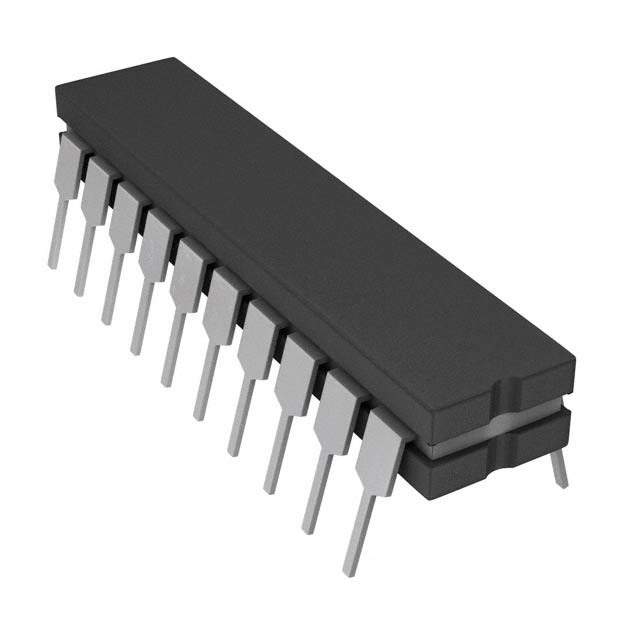

With an operating temperature range of -40°C to +85°C, the AD7545BQ is designed to perform reliably in diverse environments. Its package is a 20-pin CERDIP, which provides a robust and durable housing for the integrated circuit. The device operates on a supply voltage of +5V to +15V, giving designers flexibility in various system voltages.

For further information, detailed datasheets, and technical support, visit the Analog Devices Inc. website or contact their customer support team. The AD7545BQ is a testament to Analog Devices' commitment to providing high-quality, precision analog technology solutions.
