Analog Devices Inc. AD595CDZ Thermocouple Amplifier

The AD595CDZ is a high-precision thermocouple amplifier designed by Analog Devices Inc., a leader in the field of high-performance analog, mixed-signal, and digital signal processing integrated circuits. This integrated circuit (IC) is specifically tailored to amplify the millivolt-level signals produced by type-K thermocouples, which are widely used in temperature measurement applications across various industries.

The device simplifies the process of temperature measurement by incorporating an ice point reference (which compensates for the cold junction) and a pre-calibrated amplifier in a single monolithic IC. This integration reduces the need for additional components and calibration, ensuring a straightforward and efficient setup. The AD595CDZ is capable of providing a linearized output of 10mV/°C, directly correlating to the temperature sensed by the thermocouple, making it easy for designers to interpret the readings without complex calculations.

The robust design of the AD595CDZ ensures that it can operate effectively across a wide temperature range, typically from -55°C to +125°C, with the ability to measure temperatures up to +300°C. This makes it an excellent choice for applications that require reliable and accurate temperature monitoring under varying environmental conditions, such as industrial process control, HVAC systems, and scientific instrumentation.

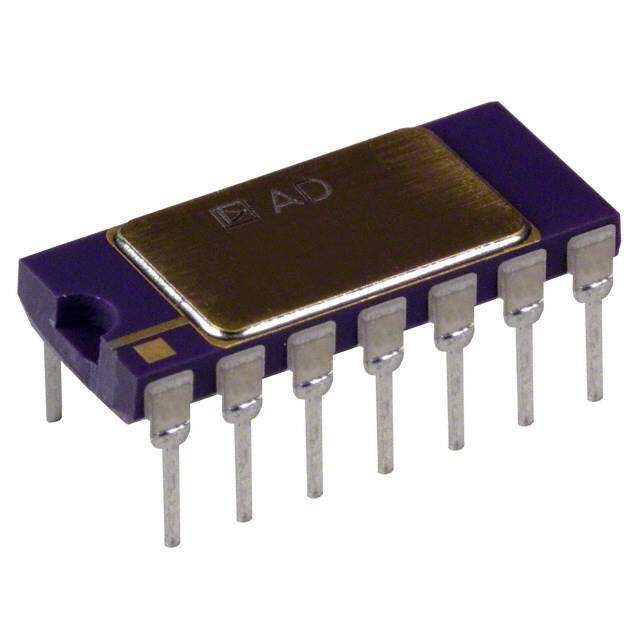

Encased in a 14-lead ceramic dual in-line package (CERDIP), the AD595CDZ is designed for durability and long-term stability. Its precision and reliability are further enhanced by features such as open thermocouple detection, which alerts the system to a potential fault condition, and a low impedance voltage output, which minimizes the effect of noise and allows for long-distance signal transmission without degradation.

For engineers and designers looking for a high-quality, easy-to-use solution for thermocouple signal amplification, the AD595CDZ from Analog Devices Inc. offers a perfect blend of precision, integration, and reliability. Its proven track record in demanding applications underscores its status as a go-to component for temperature sensing and control systems.
