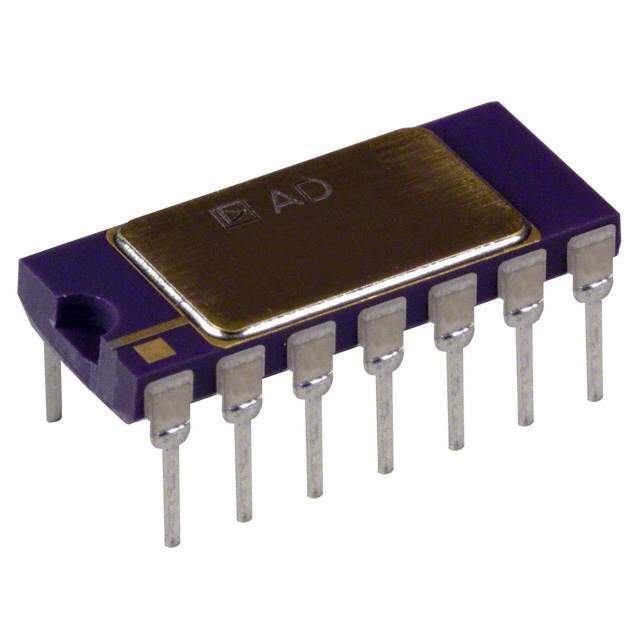

The AD534JD from Analog Devices Inc. is a monolithic laser-trimmed integrated circuit that offers high precision and low noise in analog signal processing applications. This integrated circuit is designed to perform a wide variety of analog signal processing tasks, including multiplication, division, squaring, and square rooting with exceptional accuracy and stability.

Key Features

• High Precision: The AD534JD features a laser-trimmed accuracy that ensures a low nonlinearity error of typically 0.1%. This precision makes it suitable for high-precision applications such as instrumentation and control systems.
• Wide Dynamic Range: With a dynamic range of 10 V peak-to-peak, the AD534JD can handle a broad range of input signals, providing flexibility in various use cases.
• Low Noise: The device exhibits low noise characteristics, which is critical for maintaining signal integrity in sensitive applications.
• Four-Quadrant Multiplication: It can multiply positive and negative voltages, allowing for versatile signal processing in all four quadrants.
• High Input Impedance: The high input impedance minimizes loading on the source circuit, preserving the original signal quality.
• Temperature Range: The AD534JD operates over an industrial temperature range, making it reliable in various environmental conditions.

Applications

The AD534JD is particularly well-suited for applications that require precise control and manipulation of analog signals. Typical applications include:

• Instrumentation and Calibration Systems
• Analog Computation
• Voltage-Controlled Amplifiers and Filters
• Signal Modulation and Demodulation
• Function Generation

Product Specifications

For detailed technical specifications and application guidance, it is recommended to consult the AD534JD datasheet and Analog Devices Inc. support resources.
