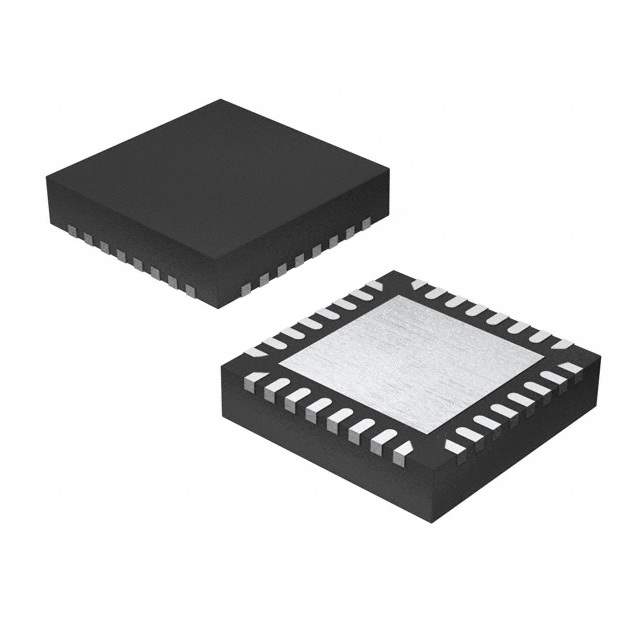

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer ams
Packaging Reel - TR
Type Class AB
Output Type Headphones, 2-Channel (Stereo)
Operating Supply Voltage 1 V ~ 1.8 V
Features Depop, Differential Inputs, I2C, Input Multiplexer, Microphone, Mute, Short-Circuit Protection, Volume Control
Mounting SMD
Operating Temperature Range -20°C ~ 85°C (TA)
Manufacturer Package 32-QFN (5x5)
Package 32-VFQFN Exposed Pad
Win Source Part Number 1147347-AS3422-EQFP
Manufacturer Homepage www.ams.com
Popularity Medium
Supply and Demand Status Limited
Family Name AS3422
Introduction Date June 10, 2012
ECCN EAR99
Country of Origin Austria
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AS3422-EQFP CAD Model

Description

The AS3422 from ams is a class AB audio amplifier with a voltage supply range of 1V to 1.8V.

  • Product Name: AS3422
  • Manufacturer: ams
  • Type: Class AB Audio Amplifier
  • Voltage Supply: 1V to 1.8V
  • Application: Headphones
  • Channels: 2 (Stereo Output)
  • Package: 32-VFQFN Exposed Pad
  • Feature: Short-Circuit Protection
  • Includes: Volume Control, Microphone, Mute, Differential Inputs, Input Multiplexer, and Depop
  • Operating Temperature: -20°C to 85°C (TA)
  • Mounting Type: Surface Mount (SMD)
  • Category: Integrated Circuits (ICs)
