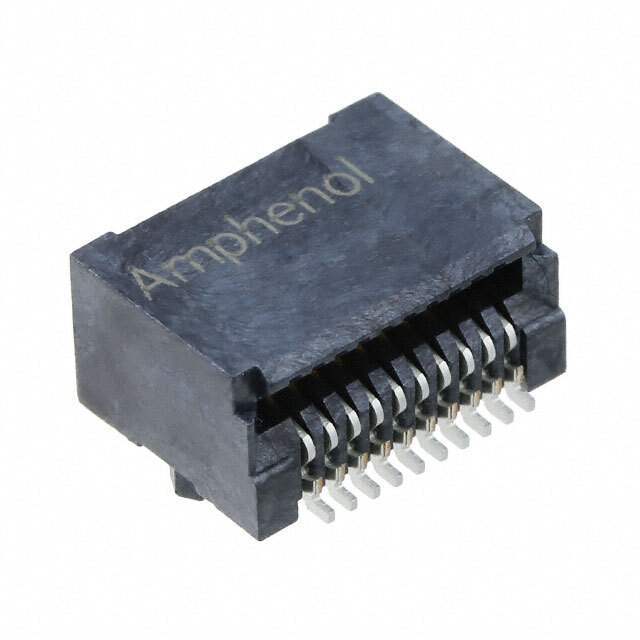

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1306837-UE76-A20-2000T
Manufacturer Amphenol ICC
Category Connectors, Interconnects -Pluggable Connectors -Pluggable Connector Assemblies
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Style Receptacle
Connector Type SFP+
Number of Positions 20
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian UE76-A20-2000T CAD Model

Description

20 Position SFP+ Receptacle Connector Solder Surface Mount, Right Angle
