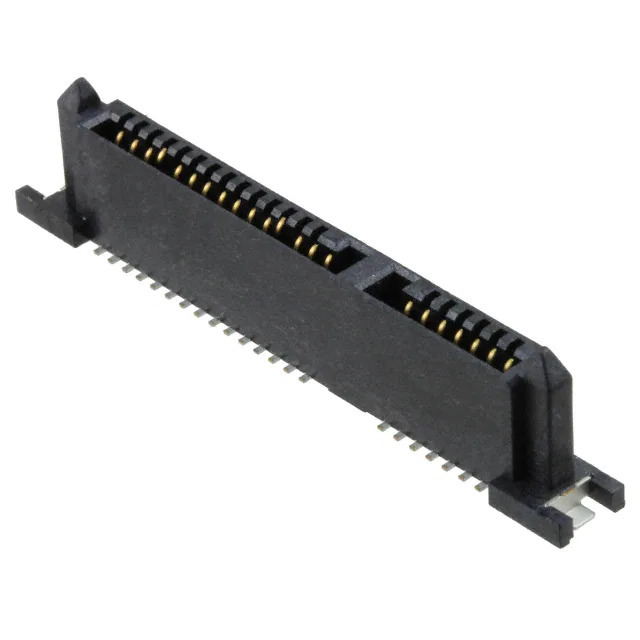

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 1735284
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364528-1735284-2
Ultra Librarian 3D Model Ultra Librarian 1735284-2 CAD Model

Description

The TE Connectivity AMP Connectors pluggable connector assembly is a high-quality component designed for use in various applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Feature: Board lock
  • Connector Compatibility: SATA connectors
  • Number of Positions: 22
  • Termination: Solder
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Product Status: Active
  • Packaging: Tray
  • MSL Level: 1
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
