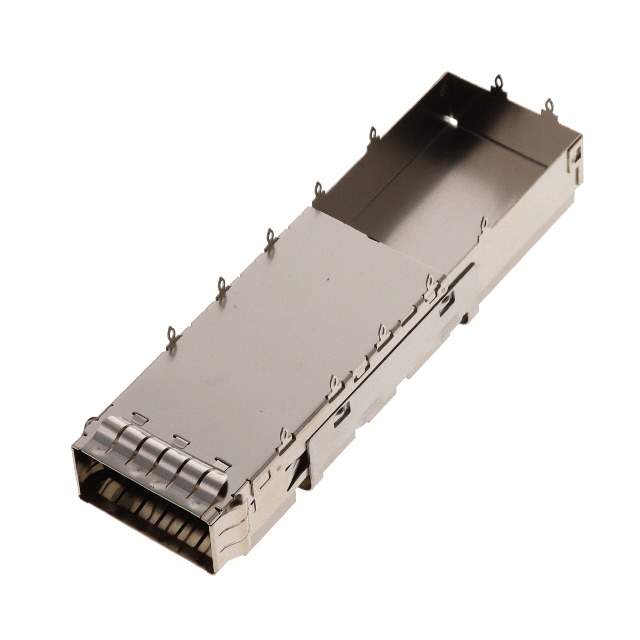

UE36-B16200-06A3A Real Image
Same model may have multiple batches, images only for reference.

UE36-B16200-06A3A

Part No UE36-B16200-06A3A
Manufacturer Amphenol
Catalog Pluggable Connectors
Description QSFP DD CAGE 1X1 W/ HS FIN PIN H / Position QSFP-DD (Double Density) Cage with Heat Sink Connector Press-Fit Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Amphenol ICC (Commercial Products)
Series UE36
Package Tray
Connector Style Cage with Heat Sink
Connector Type QSFP-DD (Double Density)
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Base Product Number UE36-B16200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 664-UE36-B16200-06A3A,UE36B1620006A3A
Standard Package 24
Win Source Part Number 1102132-UE36-B16200-06A3A
Ultra Librarian 3D Model Ultra Librarian UE36-B16200-06A3A CAD Model

Description

The UE36-B16200-06A3A is a QSFP-DD (Double Density) cage connector with heat sink from Amphenol ICC.

  • Type: QSFP-DD (Double Density) cage connector
  • Features: EMI shielding and press-fit termination
  • Application: pluggable connectors
  • Mounting Style: right-angle through-hole
  • Package: tray
  • Connectors per Package: 24
  • Alternative: UE36-B16200-06A3AUE36B1620006A3A
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Other names: 664-UE36-B16200-06A3A and UE36B1620006A3A
  • Manufacturer: Amphenol ICC
