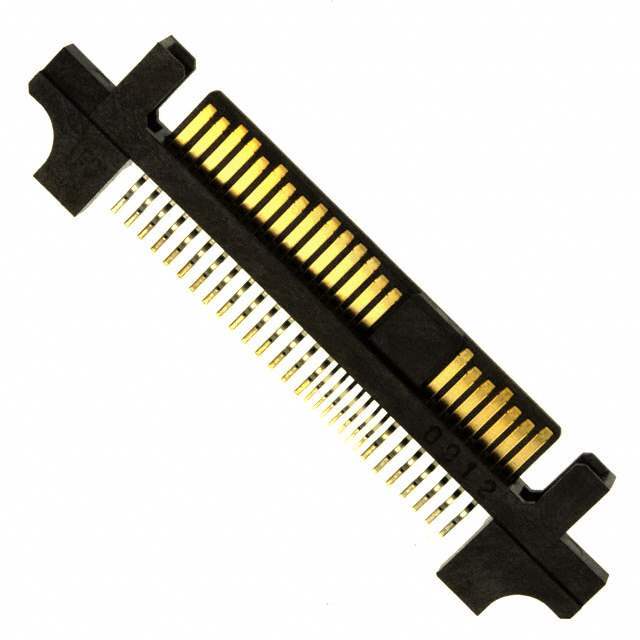

10034524-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10034524-001LF

Part No 10034524-001LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SAS PLUG 29POS SLD R/A SMD
Datasheet
10034524-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310684-10034524-001LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Pluggable Connectors > Pluggable Connector Assemblies
Packaging Tray
Part Status Active
Connector Type SAS
Number of Positions 29
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10034524-001LF CAD Model

Description

FEATURES & BENEFITS

• For high-speed serial storage interfaces of up to 12 Gb/s

• Typically used for storage backplane or HDD carrier applications

• Options for through-hole solder, press fit, surface mount (SMT), or hybrid (combination of SMT and TM leads) termination allow engineers to select the termination technique best suited to their design

• Wide-base housing options provide additional stability
