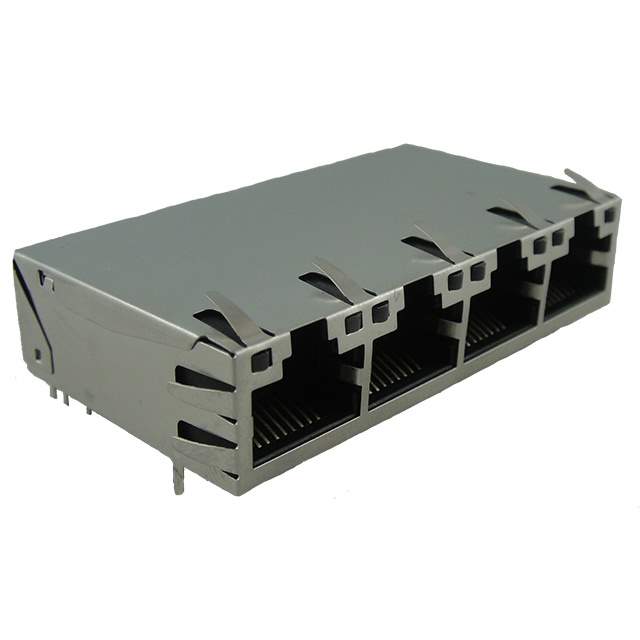

Same model may have multiple batches, images only for reference.

RJMG214034460NR

Name: RJMG214034460NR
Brand: Amphenol
SKU: 906746
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RJMG214034460NR
Manufacturer	Amphenol
Catalog	Modular Connectors
Description	CONN JACK 4PORT 1000 BASE-T PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Amphenol
Series	RJMG
Package	Tray
Product Status	Obsolete
Connector Type	RJ45
Number of Ports	4
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.526" (13.36mm)
LED Color	Yellow, Green - Yellow, Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Stainless Steel
Housing Material	Thermoplastic, Polyester
Base Product Number	RJMG2
Standard Package	200 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	906746-RJMG214034460NR
Ultra Librarian 3D Model	Ultra Librarian RJMG214034460NR CAD Model

Alternative Products

Description

The 906746-RJMG214034460NR is a modular connector jack with magnetics from the RJMG series by Amphenol.

Series: RJMG
Features: board guide, shielded connector with EMI finger
Connector Type: RJ45
Number of Ports: 4
Orientation: 90° angle
Termination: solder
Contact Finish: gold with a thickness of 30.0µin (0.76µm)
Housing Material: thermoplastic and polyester
Applications: 10/100/1000 Base-T and AutoMDIX
Mounting Type: through hole
Temperature Range: 0°C to 70°C
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
Product Status: obsolete
