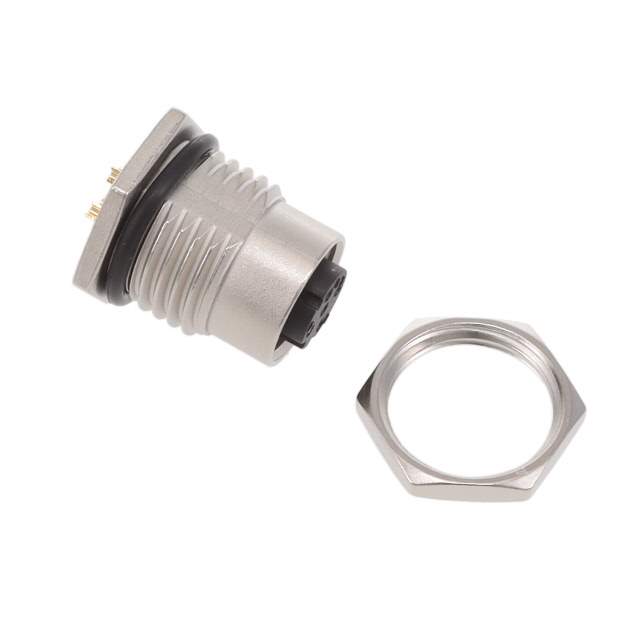

M12D-04PFFS-SF8002 Real Image
Same model may have multiple batches, images only for reference.

M12D-04PFFS-SF8002

Part No M12D-04PFFS-SF8002
Manufacturer Amphenol
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 4P GOLD SLDR CUP
Datasheet
M12D-04PFFS-SF8002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168665-M12D-04PFFS-SF8002
Manufacturer Amphenol LTW
Category Connectors, Interconnects -Circular Connectors -Circular Connector Assemblies
Series M
Package Tray
Product Status Active
Base Product Number M12D-04PFFS
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert M12-4
Mounting Type Panel Mount
Ultra Librarian 3D Model Ultra Librarian M12D-04PFFS-SF8002 CAD Model

Description

The Amphenol LTW M12D-04PFFS is a circular connector assembly designed for various applications.

  • Shell Size - Insert: M12-4
  • Mounting Type: Panel Mount
  • Packaging: Tray
  • Connector Type: Receptacle, Female Sockets
  • Series: M
  • Product Status: Active
