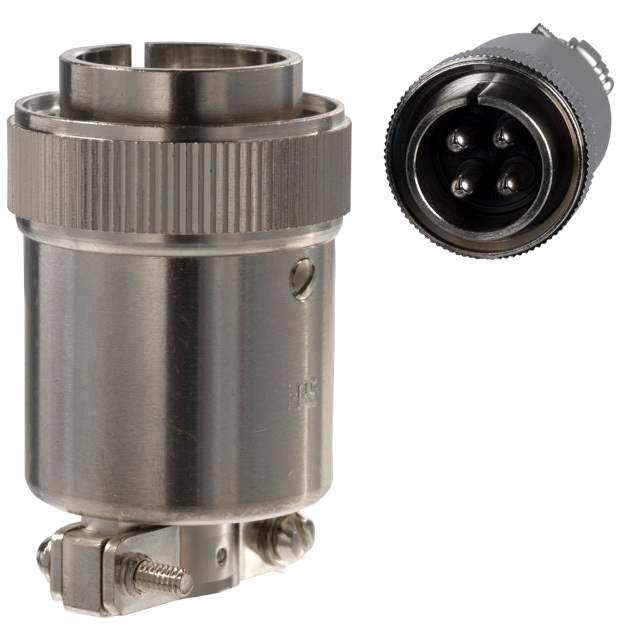

RM15TP-4PA(71) Real Image
Same model may have multiple batches, images only for reference.

RM15TP-4PA(71)

Part No RM15TP-4PA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 4P SILV SLDR CUP / 4 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 4
Shell Size - Insert 15
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Current Rating (Amps) 10A
Voltage Rating 500VAC, 700VDC
Cable Opening 0.453" (11.51mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Brass
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Diallyl Phthalate (DAP)
Base Product Number RM15TP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number RM15TP4PA71,1090899071,*RM15TP-4PA(71),HR1780,109-0899-0-71
Standard Package 20
Win Source Part Number 1334467-RM15TP-4PA(71)
Ultra Librarian 3D Model Ultra Librarian RM15TP-4PA(71) CAD Model

Description

The Hirose Electric Co Ltd RM15TP-4PA(71) is a circular connector assembly with a plug connector type.

  • Positions: 4
  • Shell Size: 15
  • Cable Opening: 0.453 inches (11.51mm)
  • Current Rating: 10A
  • Voltage Rating: 500VAC or 700VDC
  • Mounting: Free hanging (in-line)
  • Fastening Type: Threaded
  • Contact Material: Brass
  • Contact Finish: Silver
  • Contact Finish Thickness: 78.7µin (2.00µm)
  • Shell Material: Brass with a Nickel finish
  • Insert Material: Diallyl phthalate (DAP)
  • Temperature Range: -25°C to 85°C
  • RoHS Compliant: Yes
