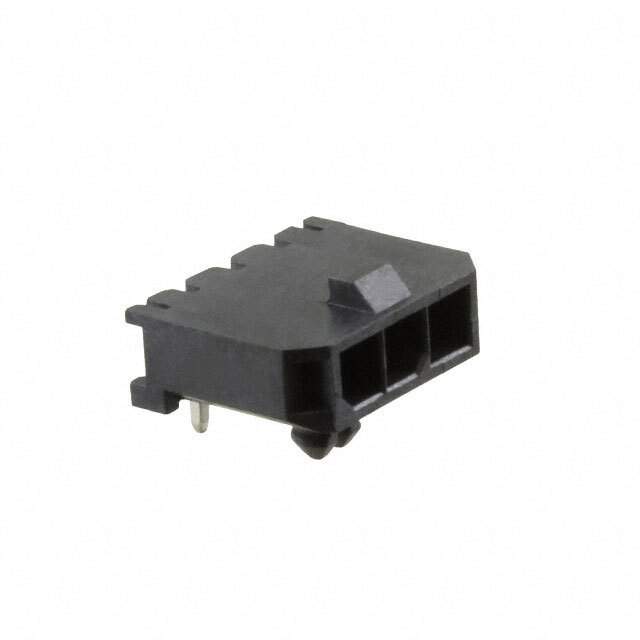

Same model may have multiple batches, images only for reference.

G88MPB03002C1EU

Name: G88MPB03002C1EU
Brand: Amphenol
SKU: 1349310
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	G88MPB03002C1EU
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 3MM / Connector Header Through Hole, Right Angle 3 position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (Commercial Products)
Series	Micro Power
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.083" (2.11mm)
Insulation Height	0.172" (4.37mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	G88MP
Standard Package	434
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349310-G88MPB03002C1EU
Ultra Librarian 3D Model	Ultra Librarian G88MPB03002C1EU CAD Model

Description

The Amphenol ICC Micro Power series header connector is a male pin rectangular connector with a board lock feature.

Series: Micro Power
Gender: Male Pin
Pitch: 0.118 inches
Contact Finish: Tin
Voltage Rating: 250V
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouded: 4 Walls
Mounting Type: Right Angle, Through Hole
Contact Material: Copper Alloy
Contact Shape: Square
Temperature Range: -40°C to 105°C
Flammability Rating: UL94 V-0
Style: Board-to-Cable/Wire
Contact Length - Post: 0.083 inches
Contact Length - Mating: 0.083 inches
Row Spacing - Mating: Not Specified
