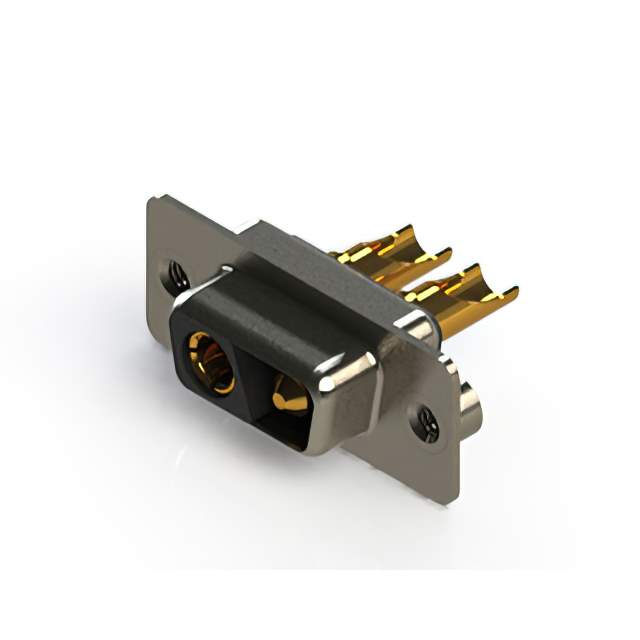

Same model may have multiple batches, images only for reference.

628-2WK2622-3TA

Name: 628-2WK2622-3TA
Brand: EDAC Inc.
SKU: 1119463
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	628-2WK2622-3TA
Manufacturer	EDAC Inc.
Catalog	D - Sub Connectors
Description	628 SERIES VERTICAL COMBO' D-SUB / 2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Datasheet	628-2WK2622-3TA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	EDAC Inc.
Series	628-C
Package	Tray
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets and Male Pins
Number of Positions	2 (Power)
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Shell Size, Connector Layout	1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2
Contact Type	Signal and Power
Flange Feature	Board Side (M3)
Termination	Solder Cup
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	30A
Features	Shielded
Voltage Rating	125V
Color	Black
Dielectric Material	Polyester Thermoplastic
Contact Material	Copper Alloy
Temperature Range - Operating	-55°C ~ 125°C
Base Product Number	628-2WK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	151-628-2WK2622-3TA
Standard Package	200
Win Source Part Number	1119463-628-2WK2622-3TA
Ultra Librarian 3D Model	Ultra Librarian 628-2WK2622-3TA CAD Model

Description

The 628-C D-Sub connector is a combo connector that comes in black color.

Connector Type: Combo D-Sub Connector
Color: Black
Number of Positions (Power): 2
Number of Rows: 2
Pitch: 0.1"
Receptacle Type: Female sockets and male pins
Contact Finish: Gold
Contact Thickness: 30.0µin (0.76µm)
Shell Material: Steel
Shell Plating: Tin plated
Package: Tray
Standard Package: 200
Voltage Rating: 125V
Current Rating: 30A
Shielded: Yes
Flange Feature: Board side (M3)
Operating Temperature Range: -55°C ~ 125°C
Manufacturer: EDAC Inc.
