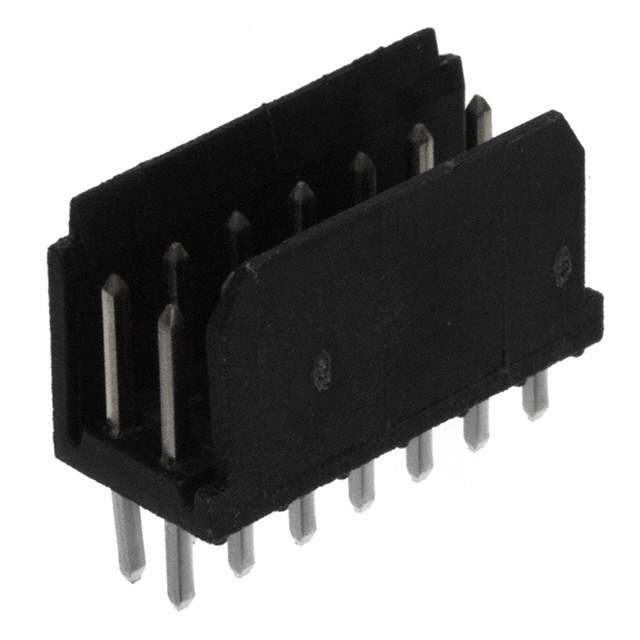

76385-307LF Real Image
Same model may have multiple batches, images only for reference.

76385-307LF

Part No 76385-307LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.197" (5.00mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.411" (10.44mm)
Insulation Height 0.368" (9.35mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 76385
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-76385-307LF,76385307LF,609-1335
Standard Package 31
Win Source Part Number 1213606-76385-307LF
Ultra Librarian 3D Model Ultra Librarian 76385-307LF CAD Model

Description

The Dubox™ electronic component is a connector with a rectangular shape and male pins. Dubox™ is the product, and the manufacturer is not specified.

  • Part Number: 1213606-76385-307LF
  • Positions: 14
  • Connector Type: Header
  • Contact Type: Male Pin
  • Loaded: All Positions
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Package: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: Not Specified
  • Insulation Material: Thermoplastic, Glass Filled
  • Pitch for Mating: 0.100" (2.54mm)
  • Contact Finish for Mating: Gold, GXT™
  • Contact Finish Thickness for Mating: 30.0µin (0.76µm)
  • Contact Finish for Post: Tin
  • Contact Finish Thickness for Post: 78.7µin (2.00µm)
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Row Spacing for Mating: 0.100" (2.54mm)
  • Contact Length for Post: 0.134" (3.40mm)
  • Overall Contact Length: 0.411" (10.44mm)
  • Insulation Height: 0.368" (9.35mm)
  • Contact Shape: Square
  • Temperature Range for Operating: -40°C to 125°C
