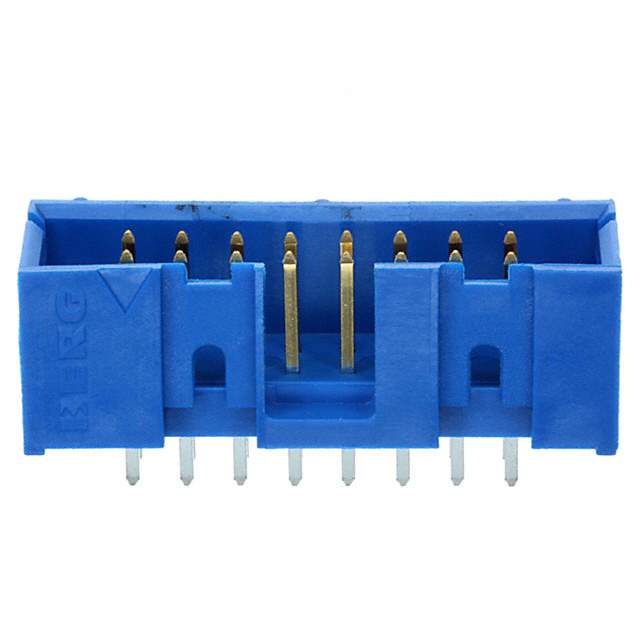

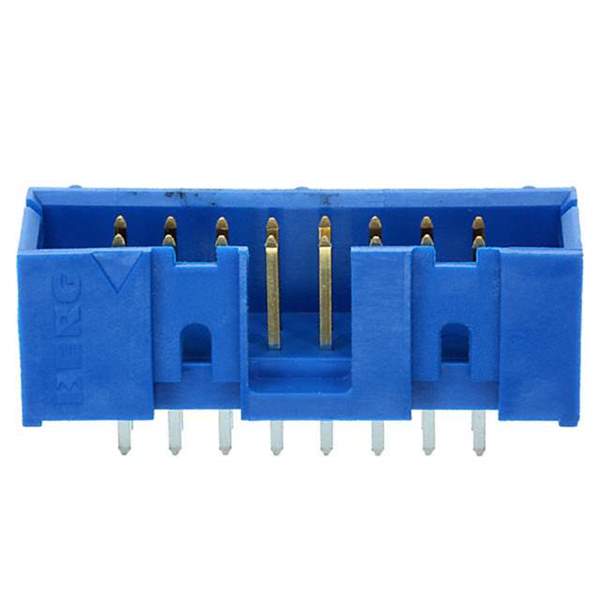

75869-103LF

Name: 75869-103LF
Brand: Amphenol
SKU: 1013655
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	75869-103LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Quickie™
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.377" (9.57mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	75869
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	75869103LF,609-1775
Standard Package	21
Win Source Part Number	1013655-75869-103LF
Ultra Librarian 3D Model	Ultra Librarian 75869-103LF CAD Model

Description

The 1013655-75869-103LF is a male pin header connector designed for use in rectangular connectors.

Connector Type: Rectangular Connector
Type: Male Pin Header
Series: Quickie™
Positions: 16
Rows: 2
Keying Slot: Yes
Termination: Solder
Shrouding: 4-Wall
Pitch: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold GXT™
Insulation Material: Thermoplastic and Glass Filled
Insulation Color: Blue
Flammability Rating: UL94 V-0
Application: Board-to-Cable/Wire
Package: Tube
Contact Length-Mating: 0.236" (6.00mm)
Contact Length-Post: 0.120" (3.05mm)
Contact Shape: Square
Insulation Height: 0.377" (9.57mm)
