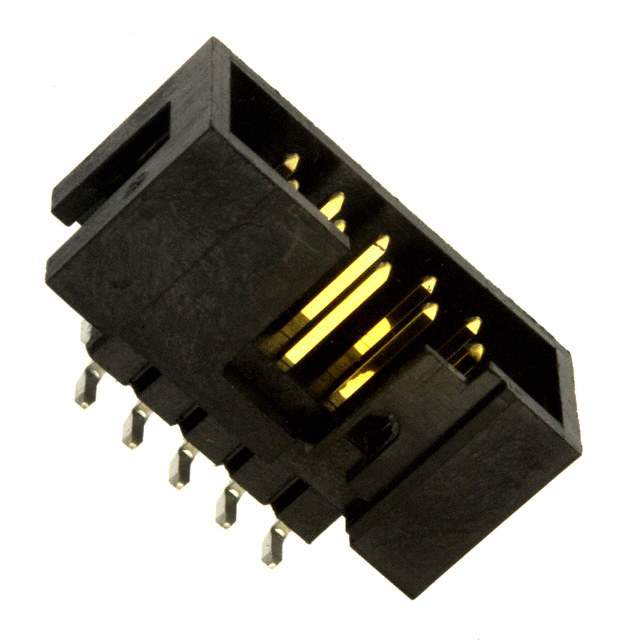

Same model may have multiple batches, images only for reference.

52601-S10-8LF

Name: 52601-S10-8LF
Brand: Amphenol
SKU: 907251
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	52601-S10-8LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	7 Weeks
Features	Connector Header Surface Mount 10 position 0.100" (2.54mm)
Manufacturer	AMPHENOL
Series	Quickie™
Package	Tray
Operating Temperature Range	-65°C ~ 105°C
Mounting	Surface Mount
Family Name	52601
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	Q9765409, 609-3593, 52601-S10-8LF-ND, 52601S108LF
Quantity per package	208
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	907251-52601-S10-8LF
Ultra Librarian 3D Model	Ultra Librarian 52601-S10-8LF CAD Model

Description

The AMPHENOL 907251-52601-S10-8LF is a surface mount connector header that is designed to provide high performance and reliability for a variety of applications.

Manufacturer: AMPHENOL
Product Number: 907251-52601-S10-8LF
Mounting Type: Surface Mount
Positions: 10
Pitch: 0.100" (2.54mm)
Series: 52601 series
Frame: Closed Frame
Housing Material: polyphenylene sulfide (PPS)
Contact Finish: tin
Contact Finish Thickness: 180.0µin (4.57µm)
Current Rating: 1 A
Contact Resistance: 30mOhm
Temperature Range: -65°C to 105°C
REACH: REACH affected
Package: tray package
Estimated Production Lead Time: 7 weeks
