Same model may have multiple batches, images only for reference.

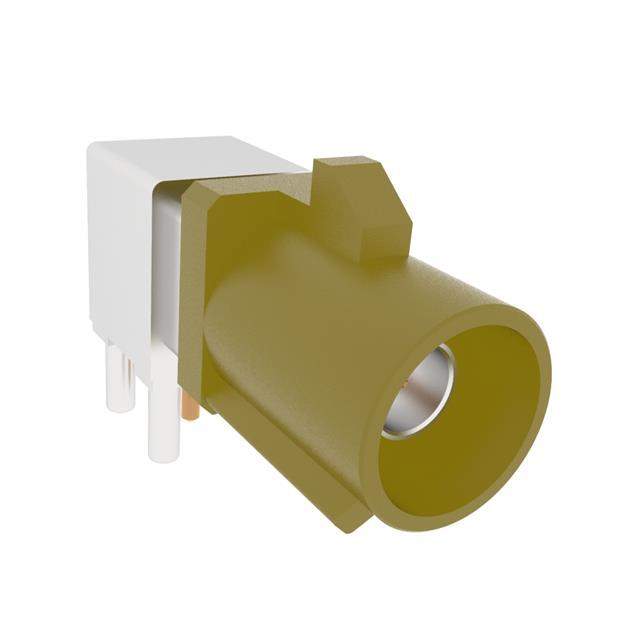

2FA1-NKRP-PCB-6 Real Image
Same model may have multiple batches, images only for reference.

2FA1-NKRP-PCB-6

Part No 2FA1-NKRP-PCB-6
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description FAKRA GEN 2 PCB THROUGH HOLE RIG / SMB, Fakra Connector Plug, Male Pin 50Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Tray
Connector Style SMB, Fakra
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Locking Ramp
Frequency - Max 4 GHz
Number of Ports 1
Features Code K
Housing Color Curry
Center Contact Material Brass
Body Material Zinc Die Cast
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names 115-2FA1-NKRP-PCB-6
Standard Package 1
Win Source Part Number 970934-2FA1-NKRP-PCB-6
Ultra Librarian 3D Model Ultra Librarian 2FA1-NKRP-PCB-6 CAD Model

Description

The SMB, Fakra connector type is a perfect solution for your electronic components needs.

  • Connector Type: plug with male pin
  • Feature: locking ramp
  • Contact Termination: solder
  • Contact Finish: tin
  • Frequency Rating: 4 GHz
  • Housing Color: curry
  • Shielded: yes
  • Impedance: 50Ohm
  • Mounting Type: through hole, right angle
  • Temperature Range: -65°C to 165°C
  • MSL Level: not applicable
  • HTSUS: 8536.69.4010
  • Manufacturer: Amphenol RF
  • Packaging: tray
  • Standard Package: 1
