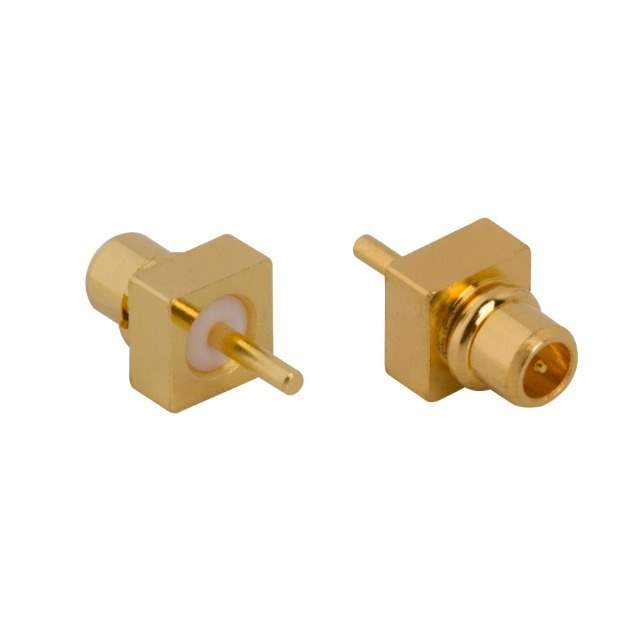

262114-10 Real Image
Same model may have multiple batches, images only for reference.

262114-10

Part No 262114-10
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN MMCX PLUG STR 50OHM PCB / MMCX Connector Plug, Male Pin 50Ohm Through Hole Solder
Datasheet
262114-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Connector Style MMCX
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Base Product Number 262114
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names ARF3036,26211410,262114-10-ND
Standard Package 100
Win Source Part Number 1039592-262114-10
Ultra Librarian 3D Model Ultra Librarian 262114-10 CAD Model

Description

The Amphenol RF 1039592-262114-10 is a coaxial connector designed for use in RF applications.

  • Connector Type: Coaxial Connector
  • Connector Style: MMCX
  • Gender: Male Plug
  • Fastening Type: Snap-on
  • Body Finish: Gold
  • Body Material: Brass
  • Frequency Range: Up to 6 GHz
  • Impedance: 50Ohm
  • Contact Termination: Solder
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Standard Package: 100
