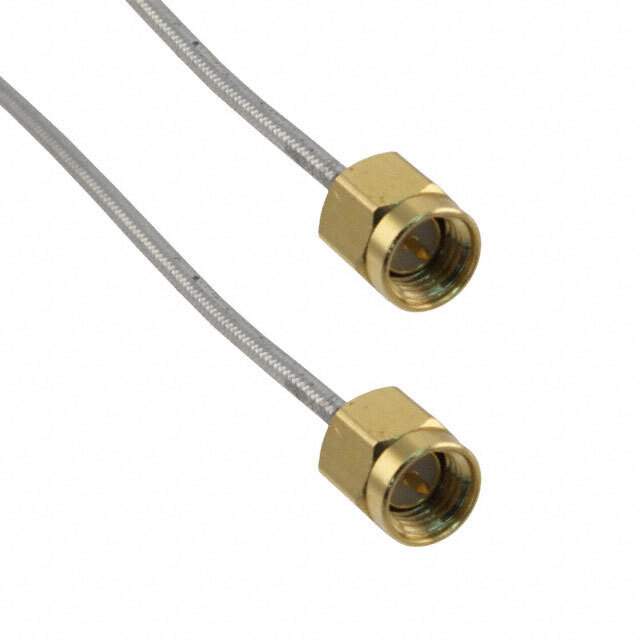

135101-R1-08.00 Real Image
Same model may have multiple batches, images only for reference.

135101-R1-08.00

Part No 135101-R1-08.00
Manufacturer Amphenol
Catalog Coaxial Cables (RF)
Description CBL ASSY SMA PLUG-PLUG .085 8" / Cable Assembly Coaxial SMA to SMA Hand Formable .085 8.000" (203.20mm)
Datasheet
135101-R1-08.00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Amphenol RF
Package Bag
Style SMA to SMA
1st Connector SMA Plug
1st Contact Gender Male
1st Connector Mounting Type Free Hanging (In-Line)
2nd Connector SMA Plug
2nd Contact Gender Male
2nd Connector Mounting Type Free Hanging (In-Line)
Length 8.000" (203.20mm)
Cable Type Hand Formable .085
Overall Impedance 50 Ohms
Frequency - Max 12.4 GHz
Color Gray
Base Product Number 135101
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.20.0000
Other Names ACX1668,135101R10800,2266-135101-R1-08.00
Standard Package 1
Win Source Part Number 1224149-135101-R1-08.00
Ultra Librarian 3D Model Ultra Librarian 135101-R1-08.00 CAD Model

Description

The Amphenol RF 135101-R1-08.00 is a cable assembly that belongs to the Coaxial Cables (RF) category.

  • Win Source Part Number: 1224149-135101-R1-08.00
  • Length: 8.000" (203.20mm)
  • Cable Type: Hand Formable .085
  • Frequency-Max: 12.4 GHz
  • Package: Standard package of 1
  • Style: SMA to SMA
  • 1st Connector: SMA Plug
  • 2nd Connector: SMA Plug
  • Impedance: 50 Ohms
  • 1st and 2nd Connector Mounting Types: Free-Hanging (In-Line)
  • 1st and 2nd Contact Gender: Male
