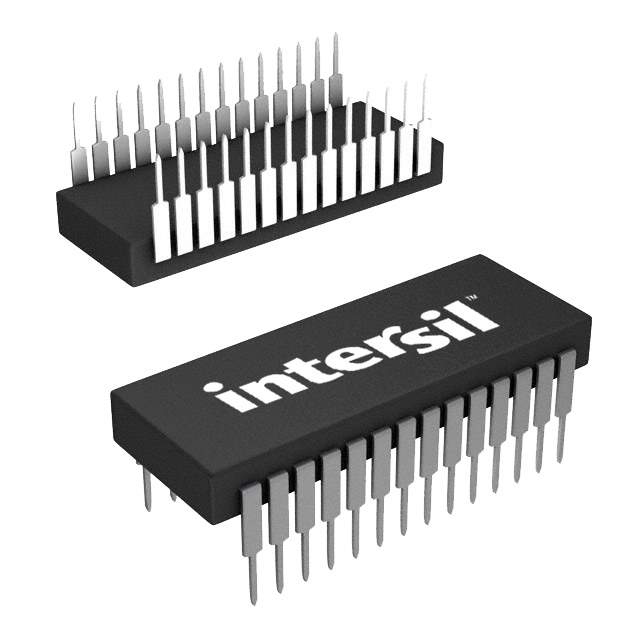

The HI1-0506-5 is a monolithic CMOS analog multiplexer/demultiplexer manufactured by Renesas Electronics America. It is designed for precision switching of analog signals with low on-resistance and fast switching speeds, suitable for applications in data acquisition, signal routing, and test equipment.

Applications

• Data Acquisition Systems: Used for multiplexing multiple analog inputs into a single ADC.
• Audio Signal Routing: Employed in audio mixers and switchers for routing audio channels.
• Video Signal Switching: Utilized in video equipment for switching between different video sources.
• ATE (Automatic Test Equipment): Used for signal routing and switching in automated testing systems.
• Sensor Selection: Enables selection between multiple sensors in industrial and automotive applications.

Features

• Low On-Resistance: Minimizes signal attenuation and distortion during switching.
• Fast Switching Speed: Allows for rapid signal switching between channels.
• Wide Analog Signal Range: Can handle analog signals across a broad voltage range.
• TTL/CMOS Compatible Logic Inputs: Simplifies interfacing with digital control systems.
• Low Power Consumption: Reduces overall system power requirements.

Benefits

• High Accuracy Signal Switching: Low on-resistance ensures accurate signal transfer.
• Reduced Signal Distortion: Minimizes signal distortion due to low on-resistance and fast switching.
• Simplified System Design: TTL/CMOS compatible inputs simplify integration with digital control.
• Energy Efficiency: Low power consumption extends battery life in portable devices.
• Versatile Signal Routing: Suitable for a wide range of analog signal routing applications.

Additional Details

The HI1-0506-5 typically features break-before-make switching action to prevent short circuits during channel transitions. It is often available in DIP and SOIC packages. The device supports both single and dual supply operation, with typical voltage ranges of +5V to +30V for single supply and ±5V to ±15V for dual supply. It is designed to operate over a wide temperature range, making it suitable for harsh environments. ESD protection is also integrated to protect the device from electrostatic discharge damage.
