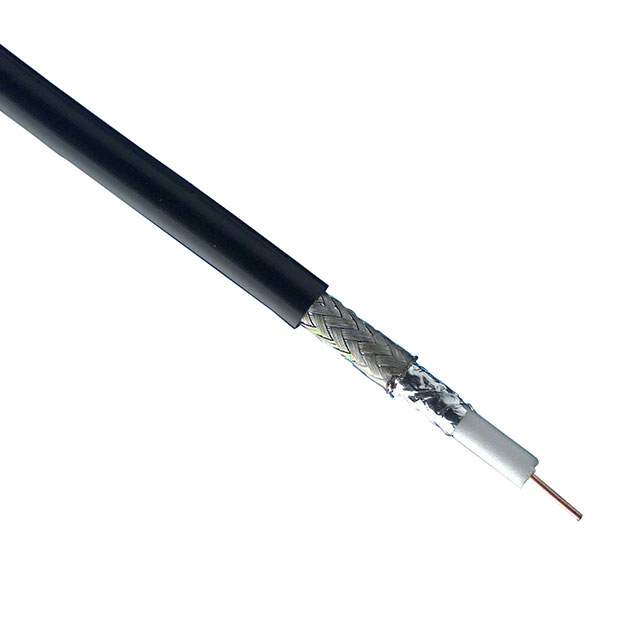

7806A 010500 Real Image
Same model may have multiple batches, images only for reference.

7806A 010500

Part No 7806A 010500
Manufacturer Belden Inc.
Catalog Coaxial Cables (RF)
Description CABLE COAX RG-58 19 AWG 500'
Datasheet
7806A 010500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Cable Type Coaxial
Cable Group RG-58
Wire Gauge 19 AWG
Conductor Strand Solid
Jacket (Insulation) Material Polyethylene (PE)
Jacket (Insulation) Diameter 0.195" (4.95mm)
Shield Type Foil, Braid
Impedance 50 Ohm
Length 500' (152.40m)
Jacket Color Black
Conductor Material Copper, Bare
Dielectric Material Foam High Density Polyethylene (FHDPE)
Dielectric Diameter 0.110" (2.79mm)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 90%
VoP, Velocity of Propagation 77
Operating Temperature Range -40°C ~ 80°C
Win Source Part Number 766170-7806A 010500
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7806A 010500 CAD Model

Description

The 766170-7806A 010500 from Belden Inc. is a medium-popularity electronic component.

  • Wire Gauge: 19 AWG
  • Length: 500' (152.40m)
  • Shield Coverage: 100%, 90%
  • Shield Material: Aluminum; copper, tinned
  • Dielectric Material: Foam high-density polyethylene (FHDPE)
  • Jacket (Insulation) Material: Polyethylene (PE)
