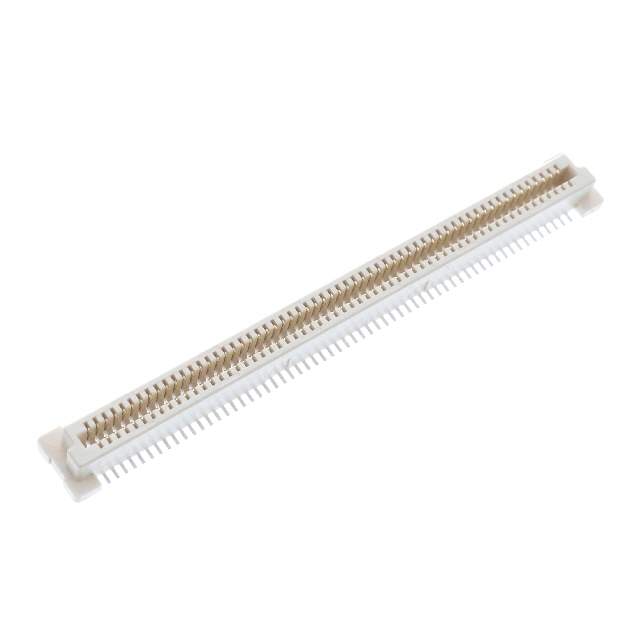

10144517-121802LF Real Image
Same model may have multiple batches, images only for reference.

10144517-121802LF

Part No 10144517-121802LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description ERGSTAK R1 120P / 120 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Amphenol ICC (FCI)
Series BergStak® Lite 0.80mm
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Plug, Center Strip Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm, 9mm, 13mm
Height Above Board 0.185" (4.70mm)
Base Product Number 10144517
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-10144517-121802LFTR,609-10144517-121802LFCT
Standard Package 800
Win Source Part Number 987173-10144517-121802LF
Ultra Librarian 3D Model Ultra Librarian 10144517-121802LF CAD Model

Description

The BergStak® Lite 0.80mm series rectangular connectors are a perfect solution for your electronic components needs. The manufacturer of this connector is Amphenol ICC (FCI).

  • Positions: 120
  • Pitch: 0.031'' (0.80mm)
  • Applications: board-to-board
  • Connector Type: plug with center strip contacts
  • Rows: 2
  • Contact Finish: gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Housing Material: thermoplastic
  • Height above board: 0.185'' (4.70mm)
  • Board Guide: Yes
  • Standard Package: 800
  • Mated Stacking Heights: 5mm, 9mm, and 13mm
  • Mounting Type: SMD (SMT)
  • REACH: unaffected by REACH
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
