Same model may have multiple batches, images only for reference.

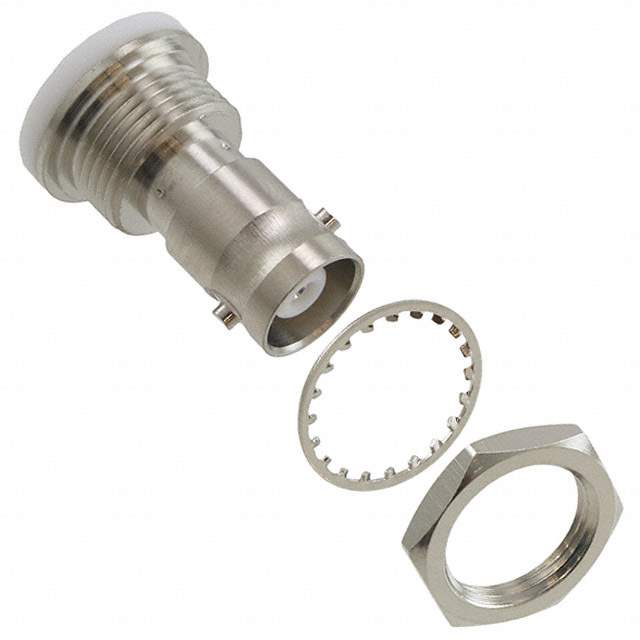

000-27025 Real Image
Same model may have multiple batches, images only for reference.

000-27025

Part No 000-27025
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN MHV RCPT STR TURRET / MHV Connector Receptacle, Female Socket Non-Constant Panel Mount Turret
Datasheet
000-27025 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Connector Style MHV
Connector Type Receptacle, Female Socket
Contact Termination Turret
Shield Termination Solder
Impedance Non-Constant
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Number of Ports 1
Housing Color Silver
Ingress Protection Weatherproof
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 000-27
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 27025,ARF2007
Standard Package 25
Win Source Part Number 1024282-000-27025
Ultra Librarian 3D Model Ultra Librarian 000-27025 CAD Model

Description

The Amphenol RF 27025 (1024282-000-27025) is a female socket receptacle coaxial connector.

  • Connector Type: Bayonet lock
  • Mounting: Bulkhead front side nut
  • Weatherproof: Yes
  • Housing Color: Silver
  • Impedance: Non-constant
  • Body Finish: Nickel
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Silver
  • Dielectric Material: PTFE
  • Temperature Range: -65°C to 165°C
  • Mounting: Panel-mounted
  • Standard Package: 25
