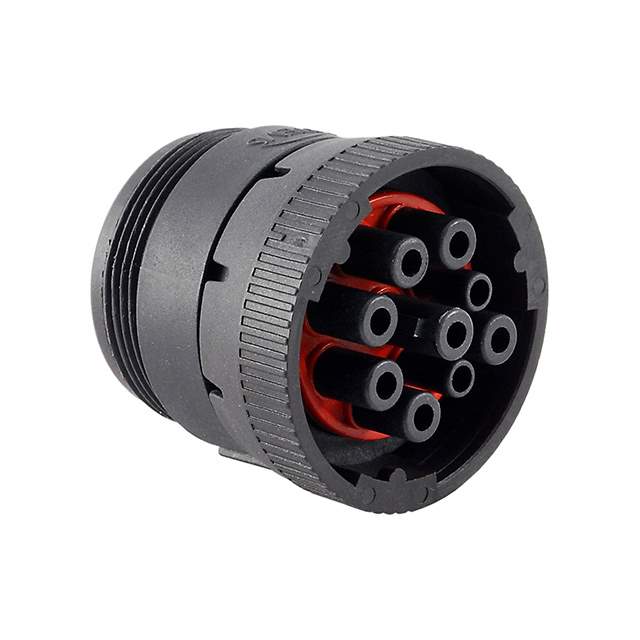

AHD16-9-1939S Real Image
Same model may have multiple batches, images only for reference.

AHD16-9-1939S

Part No AHD16-9-1939S
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN PLUG HSG FMALE 9POS INLINE / 9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Datasheet
AHD16-9-1939S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Sine Systems Corp
Series AHD™
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 9
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number AHD16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 889-1059,AHD1691939S
Standard Package 100
Win Source Part Number 1008453-AHD16-9-1939S
Ultra Librarian 3D Model Ultra Librarian AHD16-9-1939S CAD Model

Description

The Amphenol Sine Systems Corp AHD™ series circular connector housing is a plug type connector with a bayonet lock fastening system.

  • Connector Type: Plug
  • Fastening System: Bayonet Lock
  • Contact Gender: Female Sockets
  • Contact Size: 16
  • Housing Material: Thermoplastic
  • Ingress Protection: IP67
  • Shielding: Unshielded
  • Mounting: Free-Hanging (In-Line)
  • Package: Bulk
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Housing Color: Black
  • Features: Coupling Nut
