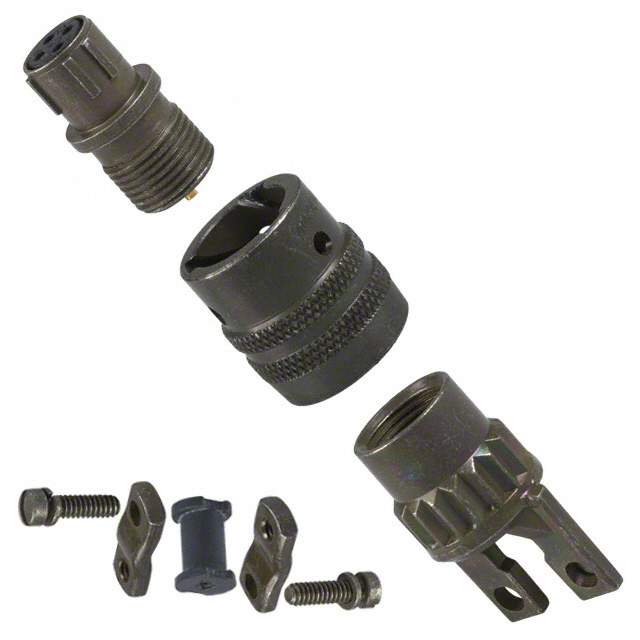

PT06A-8-4S(470) Real Image
Same model may have multiple batches, images only for reference.

PT06A-8-4S(470)

Part No PT06A-8-4S(470)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description Conn Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port / CONN PLUG 4POS W/SOCKET SOLDER
Datasheet
PT06A-8-4S(470) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert 8-4
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material, Finish Aluminum, Black Zinc Cobalt Plated
Contact Finish Gold
Features Strain Relief
Voltage Rating DC 600VAC
Current Rating 7.5A
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 785072-PT06A-8-4S(470)
Popularity Medium
Supply and Demand Status Limited
Family Name PT
Introduction Date July 14, 2004
ECCN EAR99
Country of Origin China, Germany, Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT06A-8-4S(470) CAD Model

Description

The Amphenol Industrial Operations PT06A-8-4S(470) is a MIL-DTL-26482 Series I, PT connector.

  • Connector Type: Female Socket Plug
  • Positions: 4
  • Current Rating: 7.5A
  • Fastening Type: Bayonet Lock
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Shell Material: Aluminum
  • Shell Plating: Black Zinc Cobalt
  • Operating Temperature Range: -55°C to 125°C
  • Features: Strain Relief
  • Applications: Connectors and Interconnects
  • EOL Date: 2027
