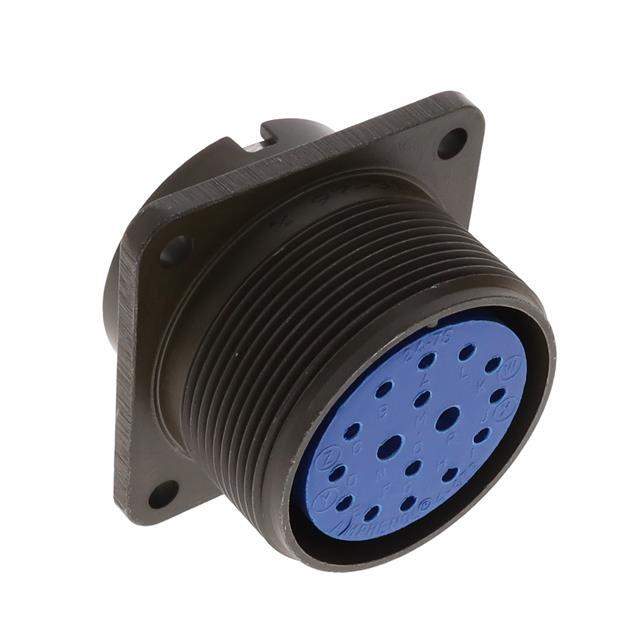

97-3102A-24-7S Real Image
Same model may have multiple batches, images only for reference.

97-3102A-24-7S

Part No 97-3102A-24-7S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT FMALE 16P SOLDER CUP / 16 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
97-3102A-24-7S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series 97
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 16
Shell Size - Insert 24-7
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Silver
Color Olive Drab
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Contact Material Copper Alloy
Insert Material Diallyl Phthalate (DAP)
Applications Automotive, Industrial
Base Product Number 97-3102A24
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names U10-820053-07S,1082005307S,973102A247S,10-820053-07S
Standard Package 1
Win Source Part Number 1042047-97-3102A-24-7S
Ultra Librarian 3D Model Ultra Librarian 97-3102A-24-7S CAD Model

Description

The Amphenol Industrial Operations 97-3102A-24-7S is a circular connector with a receptacle that has female sockets, solder cup termination, and threaded fastening type. It belongs to the 97 series and has a shell size of 24-7.

  • Product Name: 97-3102A-24-7S
  • Manufacturer: Amphenol Industrial Operations
  • Type: Circular Connector
  • Connector Style: Receptacle
  • Gender: Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Series: 97
  • Shell Size: 24-7
  • Shell Material: Aluminum Alloy
  • Shell Finish: Olive Drab Chromate over Cadmium
  • Insert Material: Diallyl Phthalate (DAP)
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Applications: Automotive and Industrial
  • Temperature Range: -55°C to 125°C
  • Package: Bulk
  • Mounting Feature: Flange Mounting
  • Alternative Parts for Cross-Reference: BACC63BV20B16P6H, MS3102E24-5P, and MS3102E24-7P, among others
