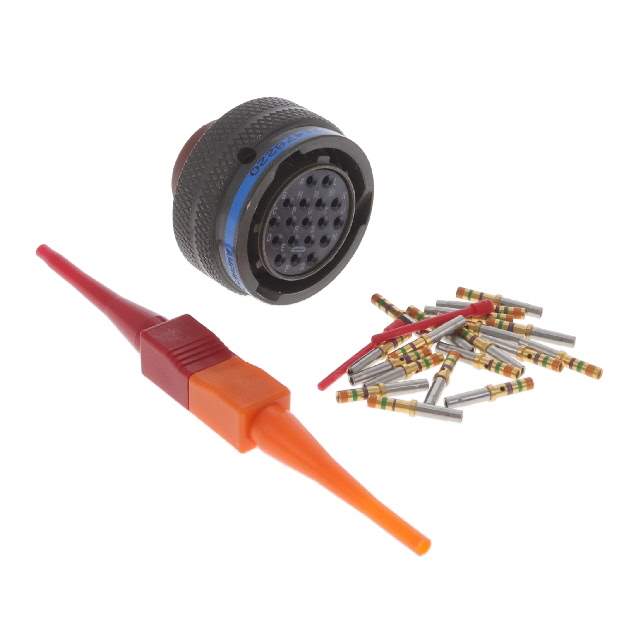

MS27473T14B18S Real Image
Same model may have multiple batches, images only for reference.

MS27473T14B18S

Part No MS27473T14B18S
Manufacturer Amphenol Aerospace Operations
Catalog Circular Connectors
Description CONN PLUG FMALE 18POS GOLD CRIMP / 18 Position Circular Connector Plug, Female Sockets Crimp
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Aerospace Operations
Series Military, MIL-DTL-38999 Series II, JT
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 18
Shell Size - Insert 14-18
Mounting Type Free Hanging (In-Line)
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Cadmium over Nickel
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Resistant
Features Coupling Nut
Shielding Unshielded
Temperature Range - Operating -65°C ~ 200°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Applications Aviation, Military
Base Product Number MS27473T14B
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 88-443249-18S,AMS27473T14B18S,MS27473T14B18S-ND
Standard Package 1
Win Source Part Number 1047386-MS27473T14B18S
Ultra Librarian 3D Model Ultra Librarian MS27473T14B18S CAD Model

Description

The MS27473T14B18S is a plug connector from the MIL-DTL-38999 Series II, JT series, designed for aviation and military applications and is manufactured by Amphenol Aerospace Operations.

  • Sockets: 18 female
  • Locking Type: Bayonet lock
  • Termination: Crimp
  • Shell Size: 14-18
  • Shell Material: Aluminum
  • Shell Finish: Olive drab cadmium over nickel
  • Environment Resistance: Yes
  • Shielded: No
  • Ingress Protection: Yes
  • Contact Material: Copper Alloy
  • Contact Finish: Gold mating
  • Voltage Rating: Not specified
  • RoHS: Non-compliant
  • ECCN: EAR99
