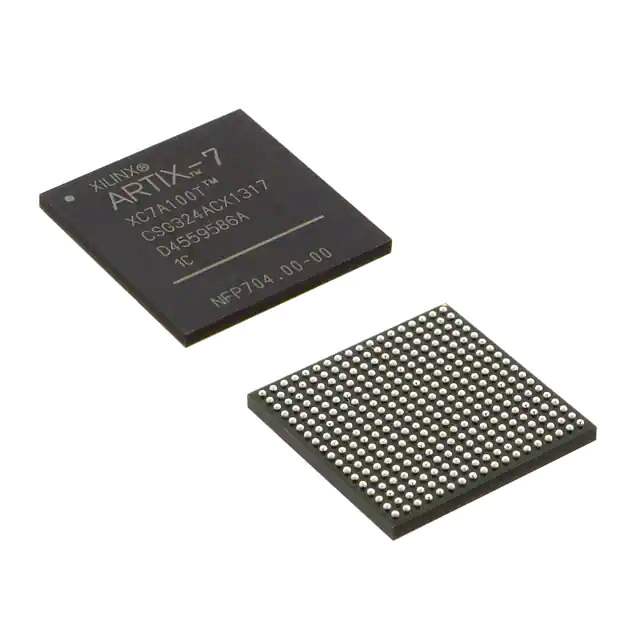

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD
Series Artix-7
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 1300
Number of Logic Elements/Cells 16640
Total RAM Bits 921600
Number of I/O 210
Voltage - Supply 0.95V ~ 1.05V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA, CSPBGA
Supplier Device Package 324-CSPBGA (15x15)
Base Product Number XC7A15
Standard Package 126 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 852920-XC7A15T-1CSG324C
Ultra Librarian 3D Model Ultra Librarian XC7A15T-1CSG324C CAD Model

Description

The XC7A15T-1CSG324C is an embedded field programmable gate array (FPGA) from the Artix-7 series.

  • Series: Artix-7
  • I/O Pins: 210
  • Programmable: Yes
  • LABs/CLBs: 1300
  • Logic Elements/Cells: 16640
  • Total RAM Capacity: 921600 bits
  • Voltage Supply Range: 0.95V to 1.05V
  • Mounting Type: surface mount
  • Package: 324-LFBGA, CSPBGA
  • Operating Temperature Range: 0°C to 85°C
  • Manufacturer: AMD
  • Status: active
