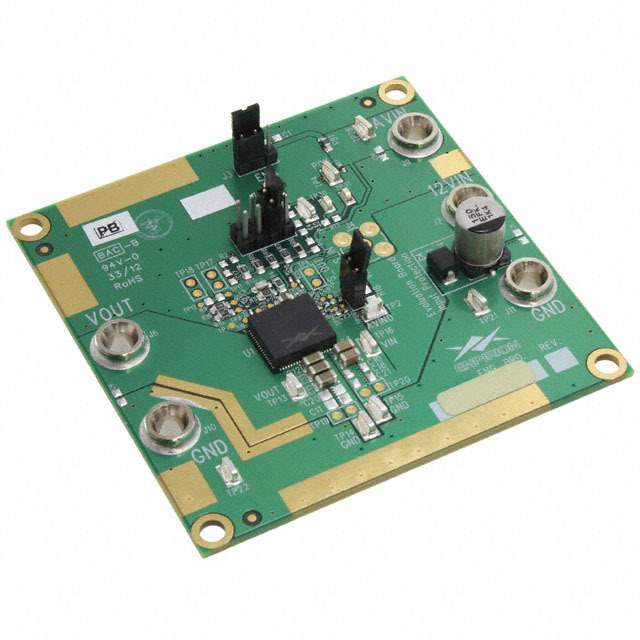

EVB-EN2390QI Real Image
Same model may have multiple batches, images only for reference.

EVB-EN2390QI

Part No EVB-EN2390QI
Manufacturer Altera
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL BOARD FOR EN2390QI / EN2390QI DC to DC Converter and Switching Regulator Chip Evaluation Board
Datasheet
EVB-EN2390QI Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Altera
Series Enpirion
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Output Current 9A
Voltage - Input 4.5 V ~ 14 V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part EN2390QI
Win Source Part Number 773783-EVB-EN2390QI
Popularity Medium
Supply and Demand Status Limited
Family Name EVB-EN2390QI
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian EVB-EN2390QI CAD Model

Description

The Altera 773783-EVB-EN2390QI is a development board kit for the Enpirion series.

  • IC: EN2390QI
  • Output Voltage Range: 4.5V to 14V
  • Maximum Output Current: 9A
  • Applications: DC/DC, Step-down voltage regulation
  • Popularity: Medium
  • Supply and Demand Status: Limited
