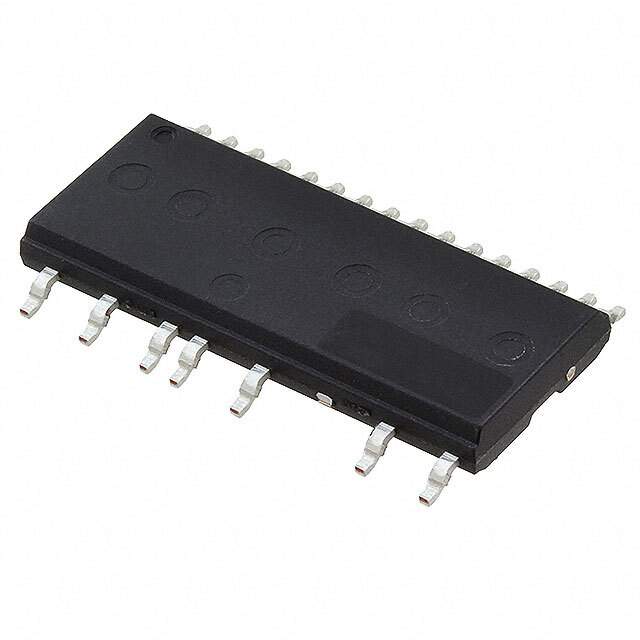

The ON Semiconductor FSB50450BS is a highly integrated, advanced smart power module that combines a comprehensive set of features to drive and control three-phase motor applications with efficiency and precision. This module is part of ON Semiconductor's Motion SPM® 5 series, designed specifically to provide a compact and high-performance solution for AC motor drives in a variety of industrial and consumer applications.

Key Features

• Integrated Power Devices: The module includes six IGBTs, three half-bridge HVICs for gate driving, and built-in bootstrap diodes, simplifying the design and reducing external component count.
• Advanced IGBT Technology: Utilizing ON Semiconductor's proprietary IGBT technology, the FSB50450BS offers low conduction and switching losses, which translates to improved overall efficiency and thermal performance.
• Under-Voltage Lockout (UVLO): Both high-side and low-side gate drivers are equipped with UVLO protection, ensuring reliable operation and protection of the IGBTs.
• Over-Current Protection: The module features an over-current protection circuit, safeguarding the device against excessive current that may cause damage.
• Isolation: The FSB50450BS provides 2500Vrms/min isolation between the low-voltage and high-voltage sides, enhancing safety and reliability.
• Compact Design: The smart power module is encapsulated in a Mini-DIP package, allowing for space-saving PCB designs and reduced thermal resistance.

Applications

The FSB50450BS is versatile and can be used in a wide range of applications, including but not limited to:

• Home appliances (e.g., washing machines, refrigerators, air conditioners)
• Fans and pumps
• Industrial drives
• General-purpose inverters

Conclusion

ON Semiconductor's FSB50450BS smart power module is an ideal choice for designers looking for a high-efficiency, reliable, and compact solution for driving three-phase motors. Its integration of multiple protection features and advanced IGBT technology ensures a high-performance operation in a diverse array of motor control applications.
