EPM7256ERC208-20 Altera

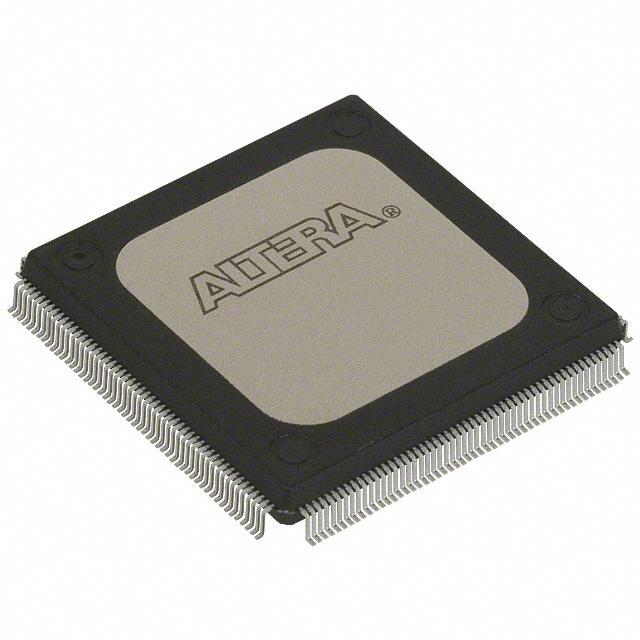

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 20.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 208-BFQFP Exposed Pad
Manufacturer Package 208-RQFP (28x28)
Win Source Part Number 774202-EPM7256ERC208-20
Popularity Medium
Supply and Demand Status Limited
Quantity per package 24
Family Name EPM7256
Introduction Date October 02, 1998
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256ERC208-20 CAD Model

Description

The Altera EPM7256ERC208-20 is a MAX 7000 series EE PLD that comes in a 208-BFQFP exposed pad package.

  • Delay Time: tpd (1) max 20.0ns
  • Operating Temperature: 0°C to 70°C
  • I/Os: 164
  • Gates: 5000
  • Logic Elements/Blocks: 16
  • Macrocells: 256
  • Obsolete: Yes
  • Introduction Date: October 2, 1998
  • Manufactured In: Philippines
  • Family Name: EPM7256
  • Category: Integrated circuits (ICs)
  • Supply and Demand Status: Limited
  • Tray Quantity: 24
