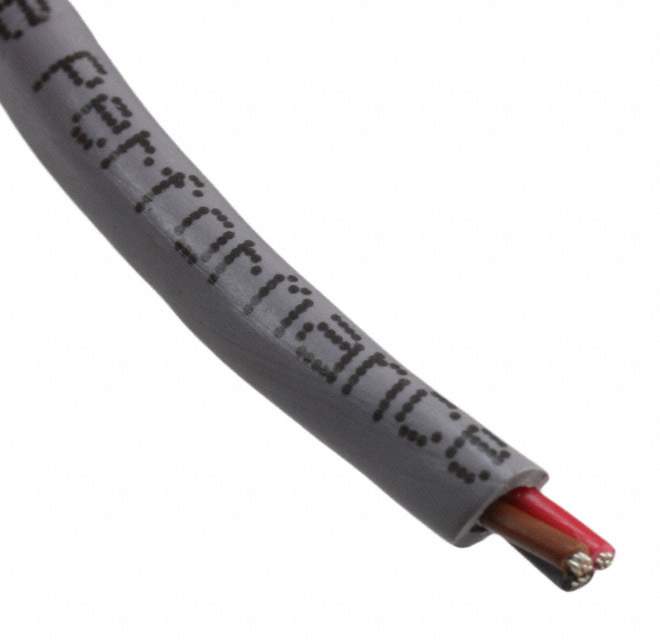

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Series Xtra-Guard 1
Cable Type Multi-Conductor
Number of Conductors 3
Wire Gauge 24 AWG
Conductor Strand 7/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.163" (4.14mm)
Length 100.0' (30.5m)
Jacket Color Slate
Ratings ISO 10993, UL Style 2464
Features Biological Compatibility, Rip Cord
Voltage 300V
Operating Temperature Range -35°C ~ 105°C
Usage Communication, Control
Jacket (Insulation) Thickness 0.032" (0.81mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Win Source Part Number 766766-5013C SL005
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5013C SL005 CAD Model

Description

The 766766-5013C SL005 is a multi-conductor cable from Alpha Wire.

  • Series: Xtra-Guard 1
  • Wire Gauge: 24 AWG
  • Length: 100.0' (30.5m)
  • Voltage Rating: 300V
  • Conductors: 3
  • Usage: Communication and Control
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket (Insulation) Diameter: 0.163" (4.14mm)
  • Rip Cord: Yes
  • Ratings: ISO 10993, UL Style 2464
  • Operating Temperature Range: -35°C to 105°C
  • Shielded: Yes
