Same model may have multiple batches, images only for reference.

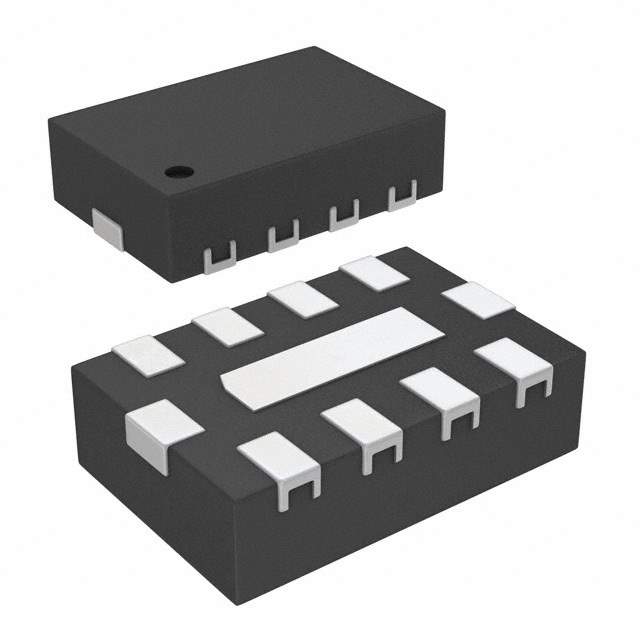

AOZ8033DIL Real Image
Same model may have multiple batches, images only for reference.

AOZ8033DIL

Part No AOZ8033DIL
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/28PF SMD
Datasheet
AOZ8033DIL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Center / Cutoff Frequency 90MHz (Cutoff)
Attenuation Value -35dB @ 800MHz to 2.2GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 28pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.071" L x 0.047" W (1.80mm x 1.20mm)
Height 0.024" (0.60mm)
Win Source Part Number 1017407-AOZ8033DIL
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AOZ8033DIL CAD Model

Description

The AOZ8033DIL is an obsolete low pass filter manufactured by Alpha & Omega Semiconductor Inc.

  • Designed for: Use in data lines for mobile devices
  • Voltage Rating: 5V
  • Current: 20mA
  • Channels: Four
  • Attenuation: -35dB @ 800MHz to 2.2GHz
  • Center/Cutoff Frequency: 90MHz (cutoff)
  • Resistance Channel: 100 Ohms
  • Protection: ESD protected
  • Package Size: 1.80mm x 1.20mm
  • Quantity: 3k pcs
