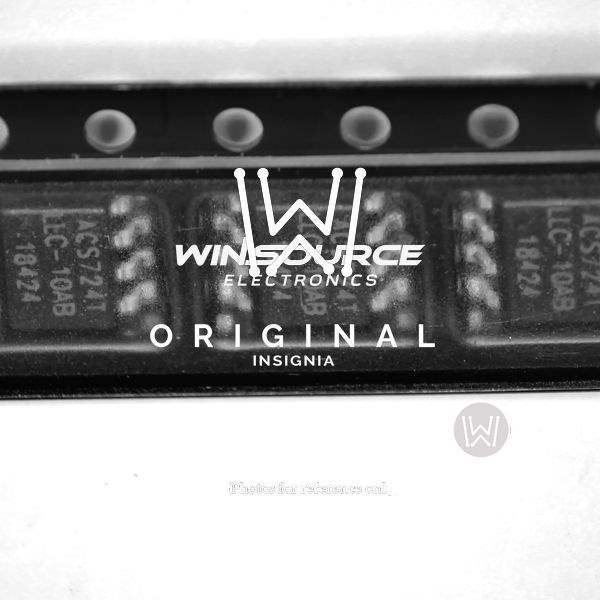

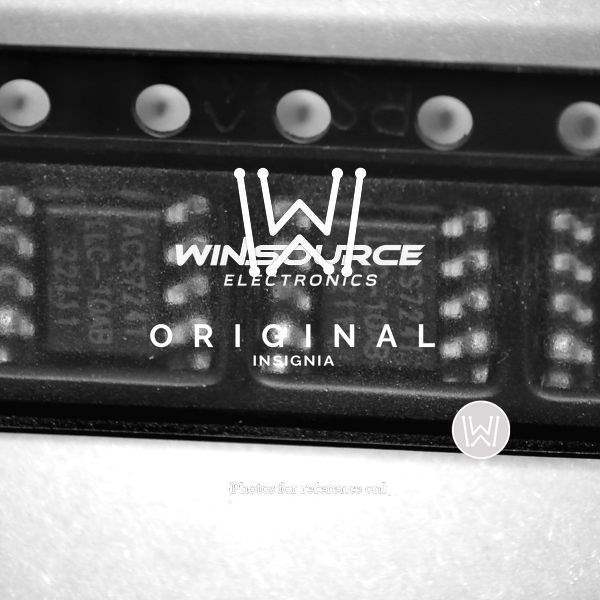

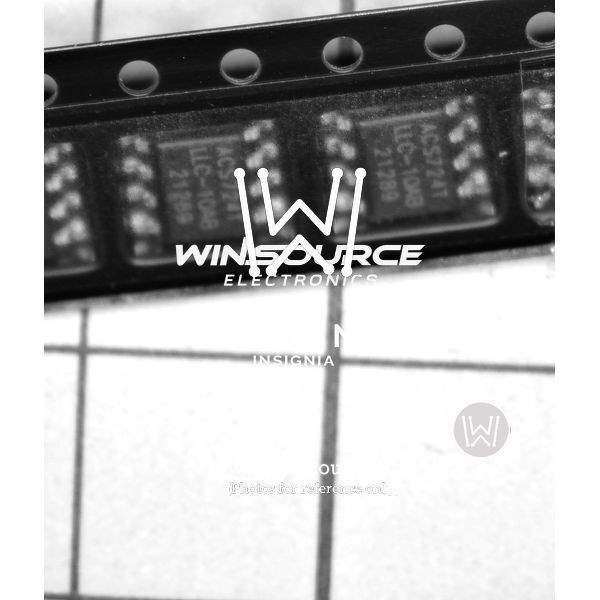

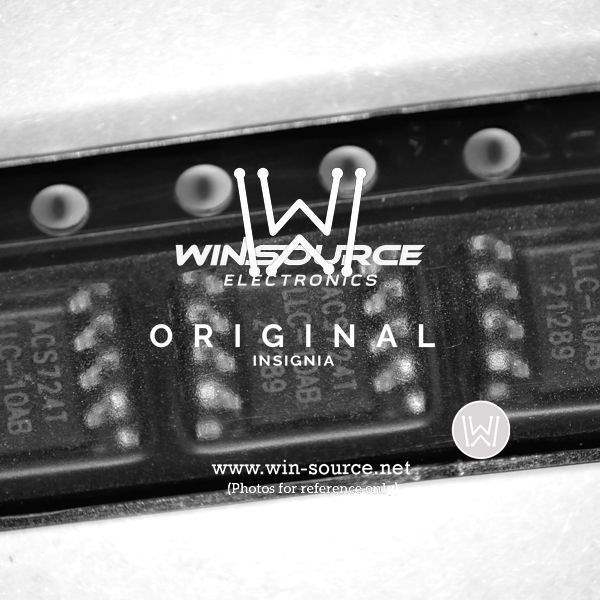

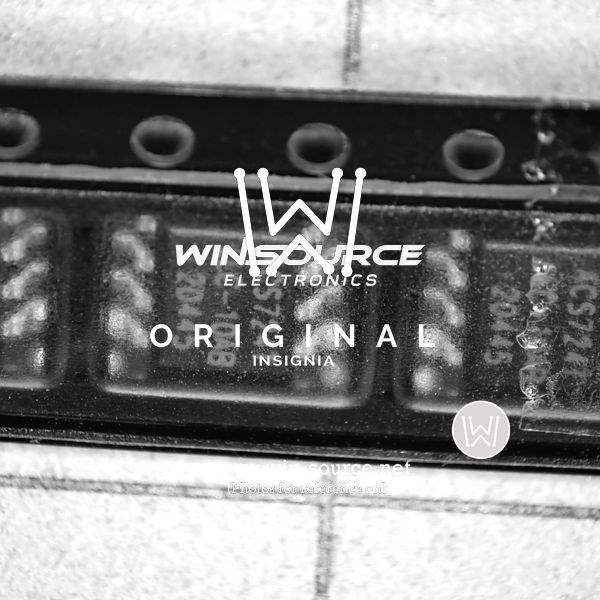

ACS724LLCTR-10AB-T Allegro MicroSystems, LLC ACS724LLCTR-10AB-T real image21489 ACS724LLCTR-10AB-T Real Image1 ACS724LLCTR-10AB-T Real Image2 ACS724LLCTR-10AB-T Real Image3 ACS724LLCTR-10AB-T Real Image4
Same model may have multiple batches, images only for reference.
ACS724LLCTR-10AB-T Allegro MicroSystems, LLC ACS724LLCTR-10AB-T real image21489 ACS724LLCTR-10AB-T Real Image1 ACS724LLCTR-10AB-T Real Image2 ACS724LLCTR-10AB-T Real Image3 ACS724LLCTR-10AB-T Real Image4
ACS724LLCTR-10AB-T Allegro MicroSystems, LLC ACS724LLCTR-10AB-T real image21489 ACS724LLCTR-10AB-T Real Image1 ACS724LLCTR-10AB-T Real Image2 ACS724LLCTR-10AB-T Real Image3 ACS724LLCTR-10AB-T Real Image4
Same model may have multiple batches, images only for reference.

ACS724LLCTR-10AB-T

Part No ACS724LLCTR-10AB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 10A AC/DC
Datasheet
ACS724LLCTR-10AB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Reel package
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 10A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 200mv/A
Frequency DC ~ 120kHz
Linearity ±1.5%
Accuracy ±1%
Operating Supply Voltage 4.5 V ~ 5.5 V
Response Time 4μs
Maximum Supply Current 14mA
Operating Temperature Range -40°C ~ 150°C
Polarization Bidirectional
Mounting SMD
Package 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number 766988-ACS724LLCTR-10AB-T
Popularity Medium
Supply and Demand Status Limited
Family Name ACS724
Introduction Date January 20, 2015
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACS724LLCTR-10AB-T CAD Model

Description

The Allegro MicroSystems ACS724LLCTR-10AB-T is a bidirectional current sensor that uses the Hall effect to measure AC/DC current.

  • Sensitivity: 200mv/A
  • Current Sensing: 10A
  • Supply Voltage: 4.5 V to 5.5 V
  • Frequency Range: DC to 120 kHz
  • Output: Ratiometric and voltage-based
  • Response Time: 4μs
  • Linearity: ±1.5%
  • Accuracy: ±1%
  • Package: 8-SOIC
  • Operating Temperature: -40°C to 150°C
