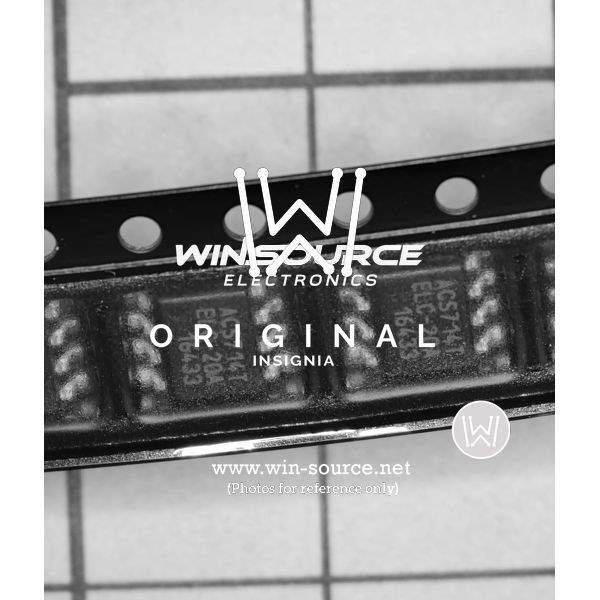

Same model may have multiple batches, images only for reference.

ACS714ELCTR-20A-T

Name: ACS714ELCTR-20A-T
Brand: Allegro MicroSystems, LLC
SKU: 848747
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ACS714ELCTR-20A-T
Manufacturer	Allegro MicroSystems, LLC
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 20A AC/DC / Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC (0.154", 3.90mm Width)
Datasheet	ACS714ELCTR-20A-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers - Current Sensors
Mfr	Allegro MicroSystems, LLC
Package	Tape & Reel
Product Status	Not For New Designs
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	20A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	100mV/A
Frequency	DC ~ 80kHz
Linearity	±1.5%
Accuracy	±1.5%
Voltage - Supply	5V
Response Time	3.5µs
Current - Supply (Max)	13mA
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Product Number	ACS714
Standard Package	3,000 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	848747-ACS714ELCTR-20A-T
Ultra Librarian 3D Model	Ultra Librarian ACS714ELCTR-20A-T CAD Model

Alternative Products

Description

The 848747-ACS714ELCTR-20A-T is a high-accuracy current sensor from Allegro MicroSystems.

Current Measurement: AC and DC up to 20A
Technology: Hall Effect
Output: Ratiometric Voltage
Sensitivity: 100mV/A
Accuracy: ±1.5%
Supply Voltage: 5V
Supply Current: 13mA (Maximum)
Mounting: Surface Mount
Package: 8-SOIC
Operating Temperature: -40°C to 85°C
Applications: Automotive and Industrial
Recommendation: Not Recommended for New Designs
