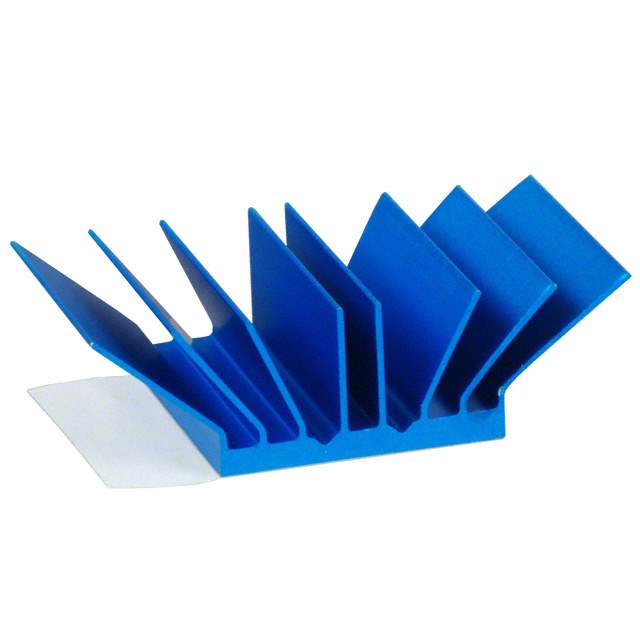

ATS-52230G-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-52230G-C1-R0

Part No ATS-52230G-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 23MM X 23MM X 12.5MM / Heat Sink Passive BGA Spread Adhesive 6.71°C/W Blue Anodized
Datasheet
ATS-52230G-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Series maxiFLOW
Type Top Mount
Package Cooled BGA
Attachment Method Thermal Tape, Adhesive (Included)
Shape Square, Angled Fins
Length 0.906" (23.01mm)
Width 0.906" (23.01mm)
Height Off Base (Height of Fin) 0.492" (12.50mm)
Thermal Resistance @ Forced Air Flow 6.7°C/W @ 200 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 798396-ATS-52230G-C1-R0
Popularity Medium
Supply and Demand Status Limited
Family Name ATS-52230G-C1-R0
Introduction Date November 01, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian ATS-52230G-C1-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. ATS-52230G-C1-R0 is a top mount thermal solution designed for use in electronic components.

  • Series: maxiFLOW
  • Shape: Square
  • Fins: Angled
  • Package Cooled: BGA
  • Attachment Method: Thermal tape or adhesive (included)
  • Thermal Resistance @ Forced Air Flow: 6.7°C/W @ 200 LFM
  • RoHS Compliant: Yes
  • Category: Fans, Thermal Management
