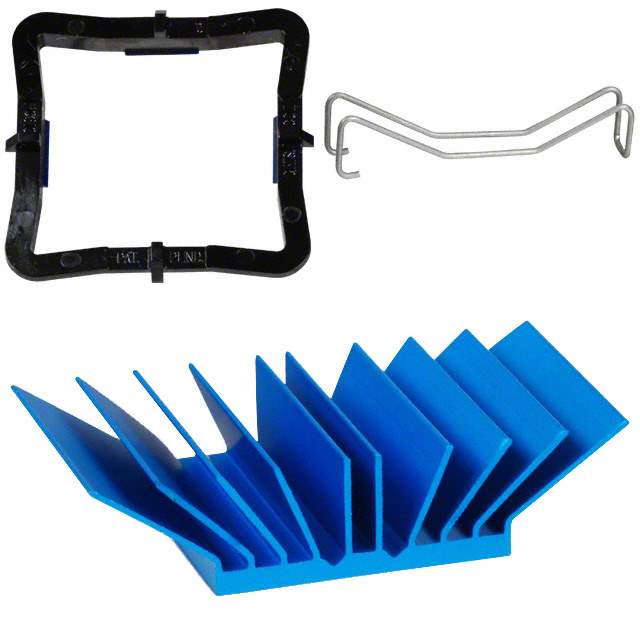

ATS-50310G-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-50310G-C1-R0

Part No ATS-50310G-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 31MM X 31MM X 12.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-50310G-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series maxiGRIP, maxiFLOW
Package Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Clip, Thermal Material
Shape Square, Angled Fins
Length 1.220" (30.99mm)
Width 1.220" (30.99mm)
Fin Height 0.492" (12.50mm)
Thermal Resistance @ Forced Air Flow 4.30°C/W @ 200 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-503
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS1024,ATS50310GC2R0,ATS-50310G-C2-R0
Standard Package 100
Win Source Part Number 1147187-ATS-50310G-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-50310G-C1-R0 CAD Model

Description

The ATS-50310G-C1-R0 heat sink is a top mount type with a square and angled fins shape.

  • Mount Type: Top Mount
  • Shape: Square, Angled Fins
  • Package Cooled: BGA
  • Attachment Method: Clip and Thermal Material
  • Dimensions: 1.220 inches L x W
  • Fin Height: 0.492 inches
  • Material: Aluminum
  • Finish: Blue Anodized
  • Thermal Resistance @ Forced Air Flow: 4.30°C/W @ 200 LFM
  • Series: maxiGRIP and maxiFLOW
