Same model may have multiple batches, images only for reference.

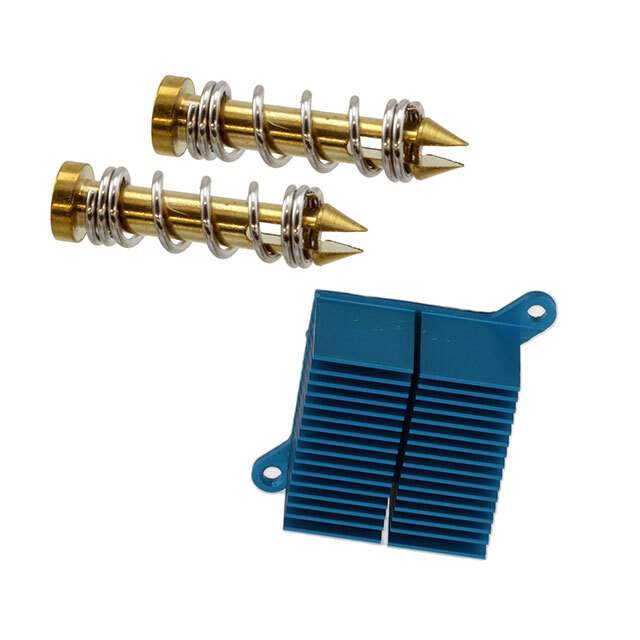

ATS-20C-60-C3-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-20C-60-C3-R0

Part No ATS-20C-60-C3-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 35X35X35MM L-TAB T412 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-20C-60-C3-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Bulk
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.378" (35.00mm)
Width 1.378" (35.00mm)
Fin Height 1.378" (35.00mm)
Thermal Resistance @ Forced Air Flow 6.50°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-20C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 100
Win Source Part Number 1142509-ATS-20C-60-C3-R0
Ultra Librarian 3D Model Ultra Librarian ATS-20C-60-C3-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. ATS-20C-60-C3-R0 is a top mount heat sink that is commonly used in various electronic devices from Advanced Thermal Solutions Inc.

  • Series: pushPIN™
  • Fin Shape: Square
  • Material: Aluminum
  • Length: 1.378" (35.00mm)
  • Width: 1.378" (35.00mm)
  • Fin Height: 1.378" (35.00mm)
  • Thermal Resistance @ Forced Air Flow: 6.50°C/W @ 100 LFM
  • Material Finish: Blue Anodized
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8473.30.5100
