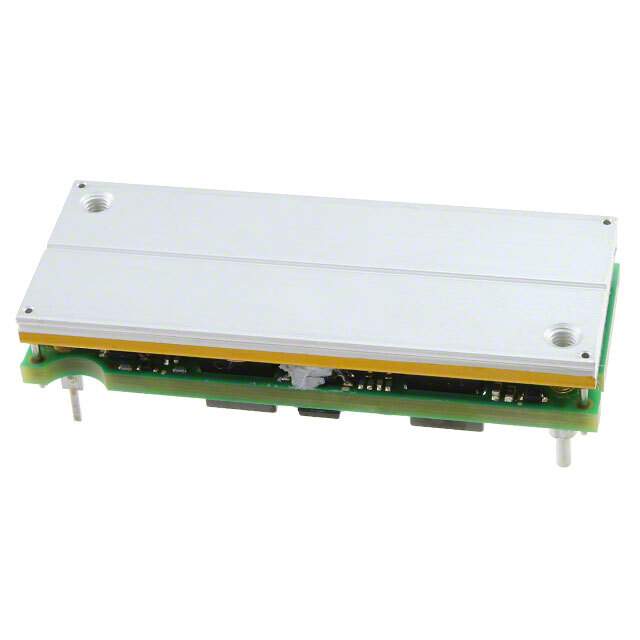

EHHD024A0A41-HZ Real Image
Same model may have multiple batches, images only for reference.

EHHD024A0A41-HZ

Part No EHHD024A0A41-HZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 120W / Isolated Module DC DC Converter 1 Output 5V 24A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series Hammerhead™ EHHD024A0A (120W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 24A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number EHHD024
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 150029827,555-1357,EHHD024A0A41HZ
Standard Package 36
Win Source Part Number 1062001-EHHD024A0A41-HZ
Ultra Librarian 3D Model Ultra Librarian EHHD024A0A41-HZ CAD Model

Description

The Hammerhead™ EHHD024A0A (120W) is an isolated module power supply that is designed for ITE (Commercial) applications.

  • Features: Remote On/Off, OCP, OTP, OVP, UVLO
  • Application: ITE (Commercial)
  • Power Rating: 120W
  • Efficiency: 92%
  • Voltage Isolation: 2.25kV
  • Maximum Output Current: 24A
  • Voltage Input: 18V to 75V
  • Voltage Output: 5V
  • Mounting Type: Through Hole
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm)
  • Manufacturer: ABB Power Electronics Inc.
