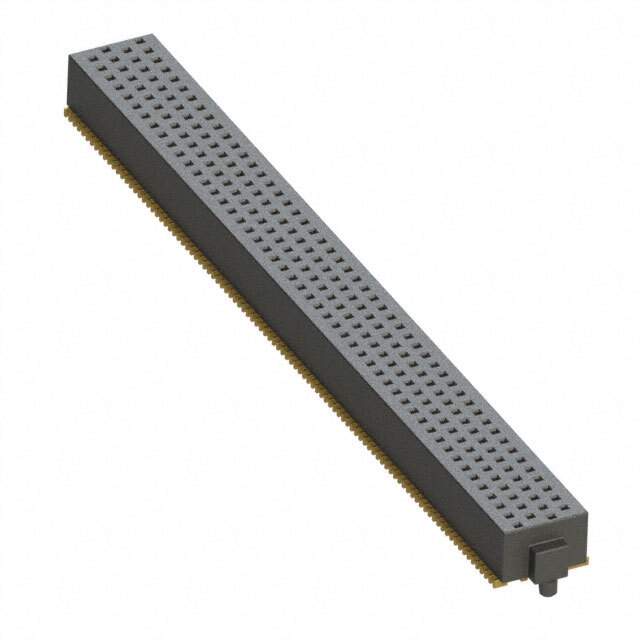

SOLC-150-02-S-Q-A Real Image
Same model may have multiple batches, images only for reference.

SOLC-150-02-S-Q-A

Part No SOLC-150-02-S-Q-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SOLC-150-02-S-Q-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 200
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-150
Other Names SAM11852,SOLC-150-02-S-Q-A
Standard Package 8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293063-SOLC-150-02-S-Q-A
Ultra Librarian 3D Model Ultra Librarian SOLC-150-02-S-Q-A CAD Model

Description

The FOURRAY™ SOLC series connector is a receptacle type connector featuring a forked contact type with a solder termination.

  • Positions: 200
  • Rows: 4
  • Positions Loaded: All
  • Insulation Material: Liquid Crystal Polymer
  • Insulation Color: Black
  • Pitch: 0.050" (1.27mm)
  • Contact Finish (Mating): Gold, 30.0µin (0.76µm)
  • Contact Finish (Post): Gold, 3.00µin (0.076µm)
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 2.4A per contact
  • Applications: Board to Board
  • Fastening Type: Push-Pull
  • RoHS Compliant: Yes
  • Material Flammability Rating: UL94 V-0
