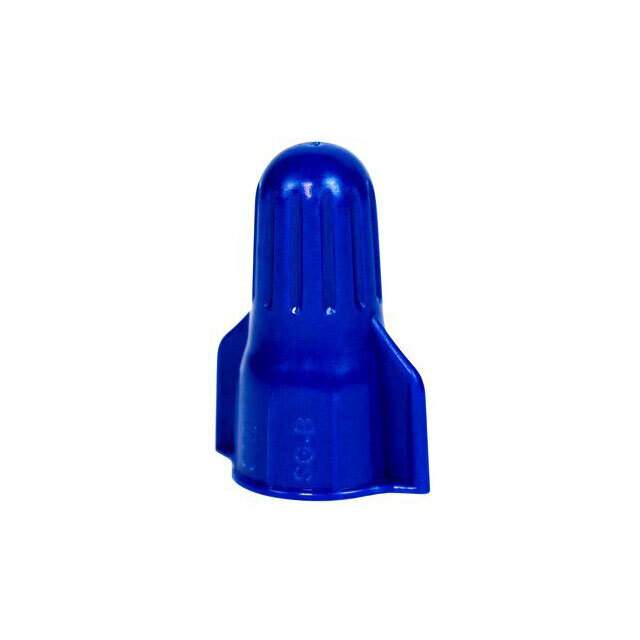

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr 3M
Series Secure Grip
Package Bulk
Terminal Type Twist On Wire Cap, Wing
Number of Wire Entries Varies by Wire Size
Termination Twist On
Wire Gauge 6-14 AWG
Insulation Fully Insulated
Features Copper Wire Only
Color Blue
Base Product Number SG-B
Other Names 7100180516,3M163034,76308926151,80000214736
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8546.90.0000
Win Source Part Number 1285135-SG-B POUCH
Ultra Librarian 3D Model Ultra Librarian SG-B POUCH CAD Model

Description

The 3M SG-B POUCH is a connector terminal for wire splice connectors. 3M

  • Termination: Twist-On
  • Insulation: Fully Insulated
  • Suitable For: Copper Wire Only
  • Wire Gauge: 6-14 AWG
  • Package: Bulk
  • Standard Package: 50
  • Terminal Type: Twist-On Wire Cap, Wing Terminal
  • Base Product Number: SG-B
