Same model may have multiple batches, images only for reference.

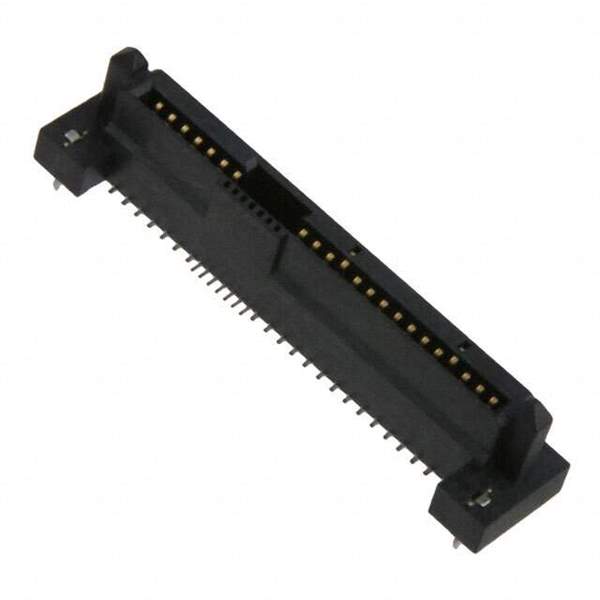

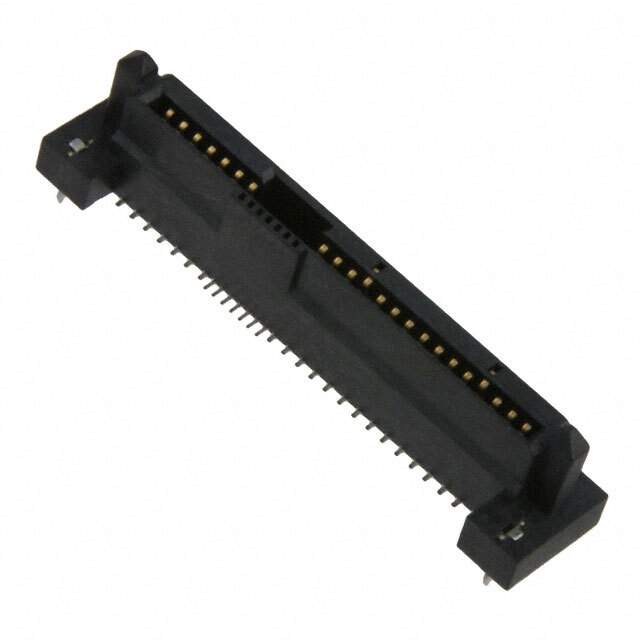

SBR-ST-29-M-ML Real Image
Same model may have multiple batches, images only for reference.

SBR-ST-29-M-ML

Part No SBR-ST-29-M-ML
Manufacturer 3M
Catalog Pluggable Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr 3M
Series SBR
Package Bulk
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting SMD (SMT)
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Other Names XE004225233,51111778852,5111177885,0-00-51111-77885-2,7100181675,SBRST29MML,-SBR-ST-29-M-ML
Standard Package 1,200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294050-SBR-ST-29-M-ML
Ultra Librarian 3D Model Ultra Librarian SBR-ST-29-M-ML CAD Model

Description

The 1294050-SBR-ST-29-M-ML is a solder-type SAS receptacle connector from 3M's SBR series.

  • Positions: 29
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Bulk
  • Mounting Type: Surface-Mount
  • ECCN: EAR99 compliant
  • MSL Level: 1
