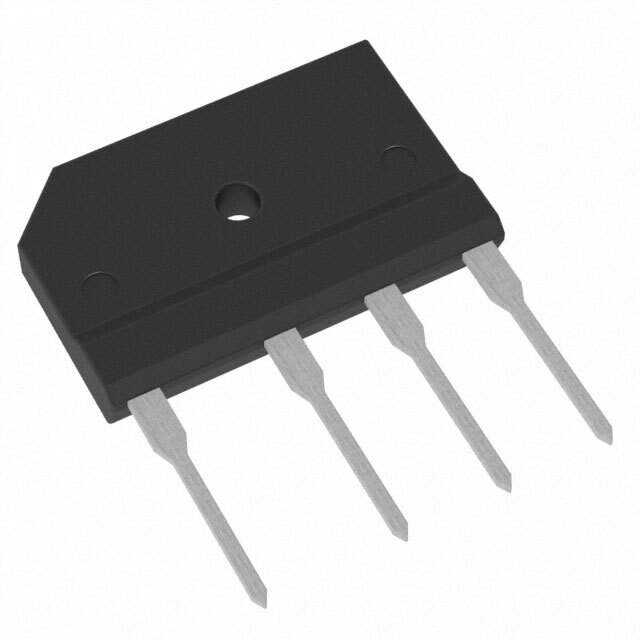

TS15P07G Real Image
Same model may have multiple batches, images only for reference.

TS15P07G

Part No TS15P07G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 15A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS15P07
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691481-TS15P07G
Ultra Librarian 3D Model Ultra Librarian TS15P07G CAD Model

Description

The 691481-TS15P07G is a single-phase bridge rectifier diode designed for standard applications in electronic circuits.

  • Current Rating: 15 A
  • Forward Voltage (Max): 1.1 V @ 15 A
  • Peak Reverse Voltage: 1 kV
  • Reverse Leakage Current: 10 μA @ 1000 V
  • Mounting Type: Through-Hole
  • Package: 4-SIP, TS-6P
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Product Status: Active
