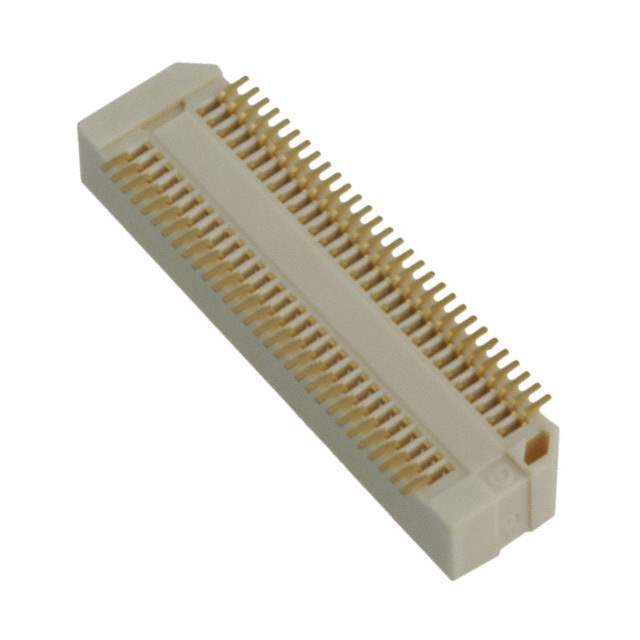

P05N-060ST-B-G Real Image
Same model may have multiple batches, images only for reference.

P05N-060ST-B-G

Part No P05N-060ST-B-G
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN SOCKET 60POS SMD GOLD / 60 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr 3M
Series P05N
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 4mm, 5mm, 6mm
Height Above Board 0.120" (3.05mm)
Base Product Number P05N
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340066-P05N-060ST-B-G
Ultra Librarian 3D Model Ultra Librarian P05N-060ST-B-G CAD Model

Description

This P05N series connector array is a socket type with outer shroud contacts and 60 positions.

  • Manufacturer:
  • Product Name: P05N series
  • Connector Type: Socket
  • Contacts: Outer Shroud
  • Positions: 60
  • Pitch: 0.020 inches
  • Rows: 2
  • Features: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00 micro inches
  • Height Above Board: 0.120 inches
  • Mounting Type: Surface Mount
  • Standard Package: 1,500
