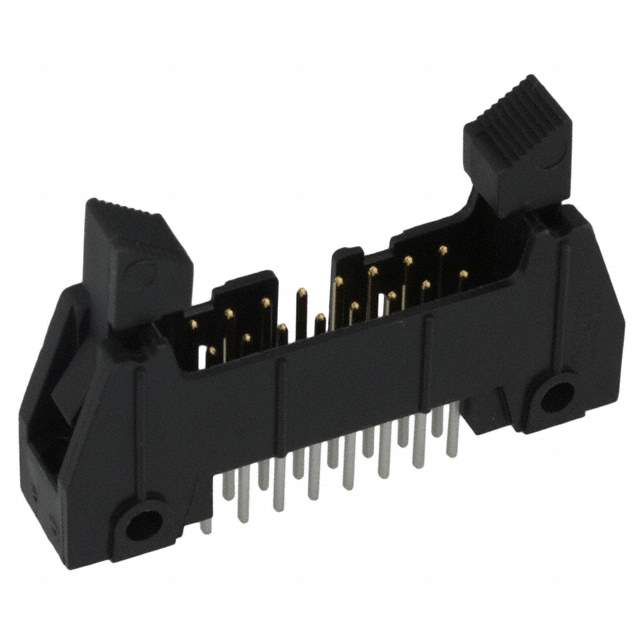

N3408-6202RB Real Image
Same model may have multiple batches, images only for reference.

N3408-6202RB

Part No N3408-6202RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer 3M
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3408
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5111162755,00051111627556,80000915902,80400031631,51111743508,5111174350,7000057647,N34086202RB,N3408-6502RB-ND,XP700003633,N3408-6202RB-ND,MHS16S,N3408-6502RB,05111174350,51111627556,00051111743508,05111162755
Standard Package 350
Win Source Part Number 1333076-N3408-6202RB
Ultra Librarian 3D Model Ultra Librarian N3408-6202RB CAD Model

Description

The 3M 1333076-N3408-6202RB is a 16-position male pin header connector.

  • Keying Slot: Yes
  • Mounting Flange: Yes
  • Application: Board-to-Board or Cable Connections
  • Pitch: 0.100 inches (2.54mm)
  • Current Rating: 1.75A
  • Contact Material: Copper Alloy
  • Contact Finish Mating: Gold
  • Contact Finish Thickness Mating: 30.0μin (0.76μm)
  • Contact Finish Post: 200.0μin (5.08μm)
  • Shrouded: 4 Walls
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Length Post: 0.112 inches (2.84mm)
  • Contact Length Mating: 0.240 inches (6.10mm)
  • Contact Length Overall: 0.652 inches (16.56mm)
  • Insulation Height: 0.680 inches (17.27mm)
  • Temperature Range: -55°C to 105°C
