D2514-6002-AR

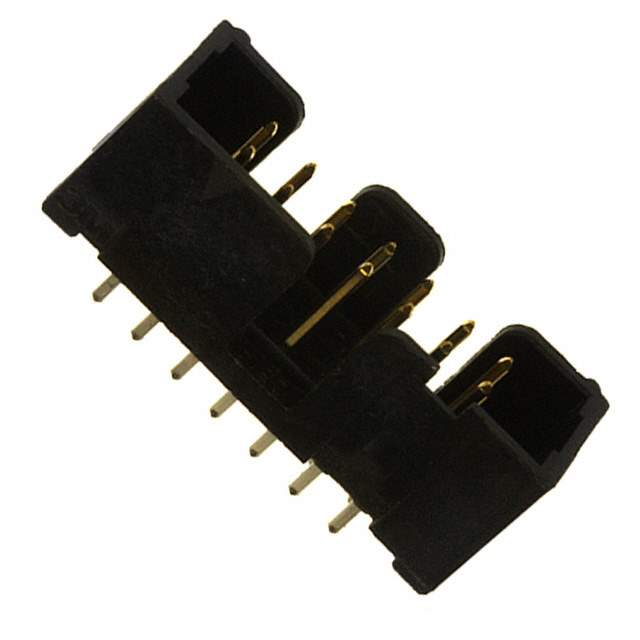

Part No D2514-6002-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER 14POS VERT 10GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 14
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.243" (6.17mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.492" (12.50mm)
Insulation Height 0.253" (6.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1.75A
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 203237-D2514-6002-AR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name D2500
Introduction Date December 20, 2007
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2024
